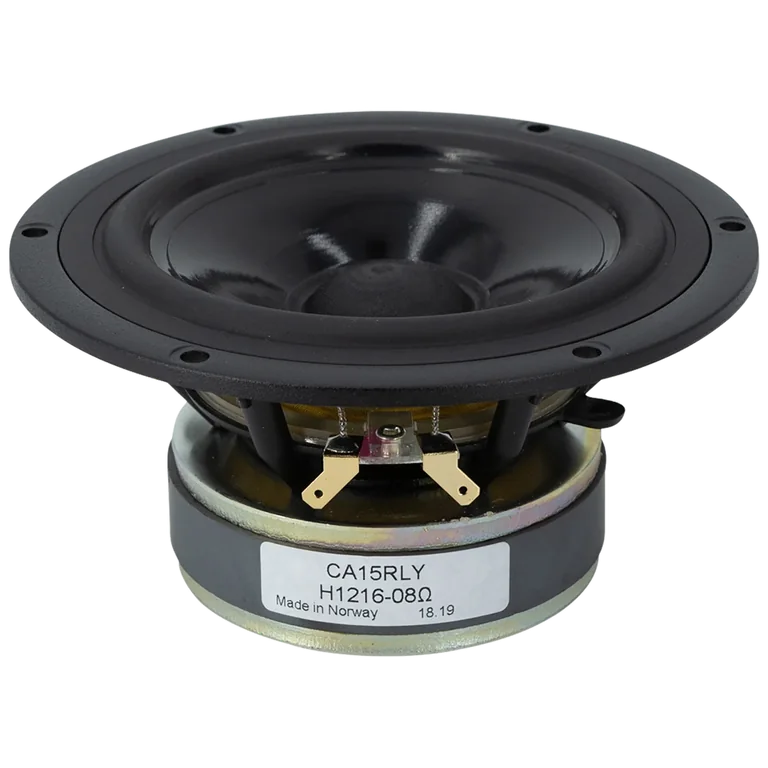

SEAS CA15RLY standard | Fs 44 Hz, Qts 0.340 | LoudspeakerLab

Thiele-Small parameters

Fs: 44 Hz; Qts: 0.340; Qes: 0.420; Qms: 1.880; Vas: 14.00 L; Sd: 80.0 cm²; Re: 5.60 Ω; Le: 0.82 mH; Nominal Z: 8.0 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 64 · DI tracking 27 · DI smoothness 41

Usable passband

Scored passband 89 Hz–6.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~8.1 L · Fb 57 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• audioxcel — $124.95 EUR
• loudspeakershop — $622.93 PLN
• madisound — $122.90 USD
• rumoh — $106.78 EUR
• soundimports — $99.13 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• SEAS
