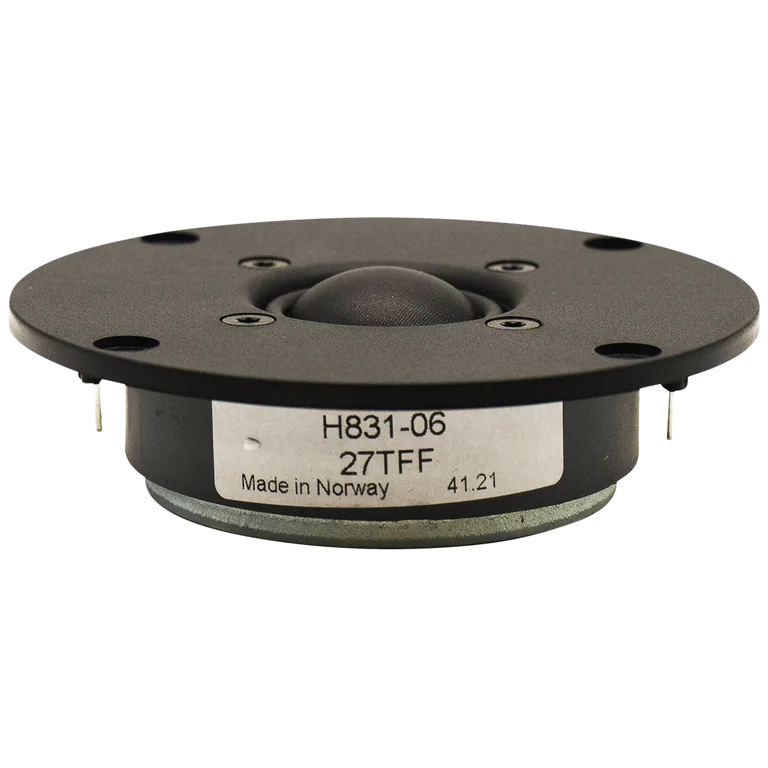

SEAS 27TFF standard | Fs 1200 Hz, 92.0 dB, Qts 0.790 | LoudspeakerLab

Thiele-Small parameters

Fs: 1200 Hz; Qts: 0.790; Qes: 1.157; Qms: 2.494; Sd: 7.5 cm²; Re: 4.80 Ω; Le: 0.05 mH; Sensitivity: 92.0 dB; Nominal Z: 6.0 Ω; Measured range: 110-19738 Hz

Driver quality scores

On-axis flatness 89 · DI tracking 23 · DI smoothness 11

Usable passband

Scored passband 2038 Hz–12.4 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• solen — $86.18 CAD
• soundimports — $49.55 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• SEAS
