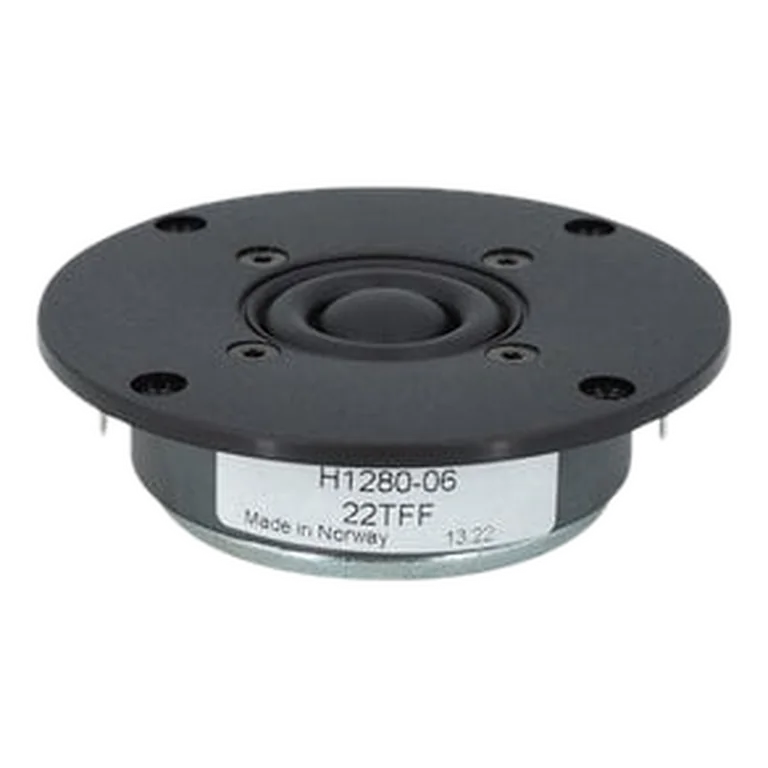

SEAS 22TFF standard | Fs 1050 Hz, 91.0 dB, Qts 0.841 | LoudspeakerLab

Thiele-Small parameters

Fs: 1050 Hz; Qts: 0.841; Qes: 1.252; Qms: 2.558; Sd: 5.9 cm²; Re: 4.90 Ω; Le: 0.05 mH; Sensitivity: 91.0 dB; Nominal Z: 6.0 Ω; Measured range: 101-19997 Hz

Driver quality scores

On-axis flatness 84 · DI tracking 0 · DI smoothness 36

Usable passband

Scored passband 2098 Hz–13.2 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• solen — $84.85 CAD
• soundimports — $48.31 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• SEAS
