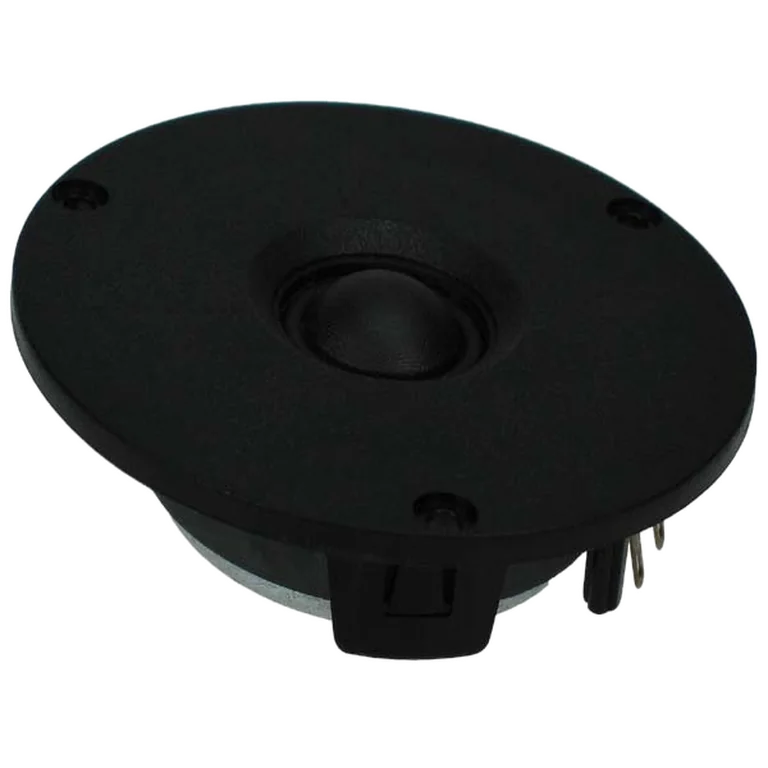

SEAS 19TFF standard | Fs 1700 Hz, 88.0 dB, Qts 0.741 | LoudspeakerLab

Thiele-Small parameters

Fs: 1700 Hz; Qts: 0.741; Qes: 1.825; Qms: 1.248; Sd: 4.0 cm²; Re: 6.20 Ω; Le: 0.05 mH; Sensitivity: 88.0 dB; Nominal Z: 8.0 Ω; Measured range: 191-19738 Hz

Driver quality scores

On-axis flatness 88 · DI tracking 14 · DI smoothness 18

Usable passband

Scored passband 3054 Hz–13.3 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)
• spec sheet (spec_sheet)

Where to buy

• soundimports — $49.95 EUR
• solen — $71.55 CAD
• madisound — $46.90 USD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• SEAS
