Scan-Speak R2904/700009 standard | Fs 520 Hz, 94.5 dB, Qts 0.330 | LoudspeakerLab

Scan-Speak R2904/700009 standard measurements on LoudspeakerLab. 94.5 dB sensitivity. Fs 520 Hz. Qts 0.330. Evidence grade C+ (57.0/100).

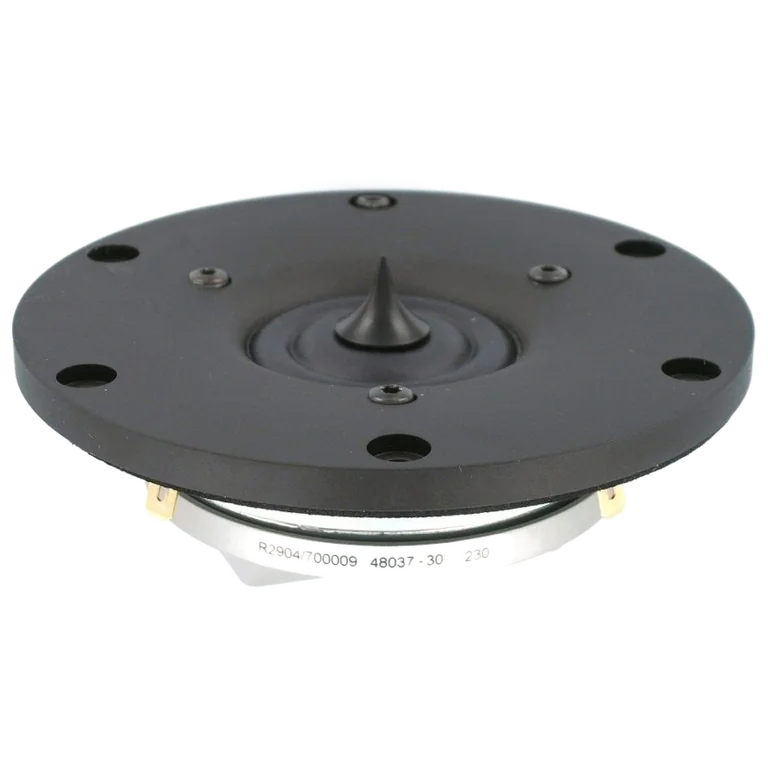

Preview

Thiele-Small parameters

Fs: 520 Hz; Qts: 0.330; Qes: 0.380; Qms: 2.900; Vas: 0.01 L; Sd: 5.6 cm²; Re: 3.00 Ω; Le: 0.01 mH; Sensitivity: 94.5 dB; Nominal Z: 4.0 Ω; Measured range: 223-20000 Hz

Driver quality scores

On-axis flatness 79 · DI tracking 37 · DI smoothness 31

Usable passband

Scored passband 1004 Hz–16.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer
