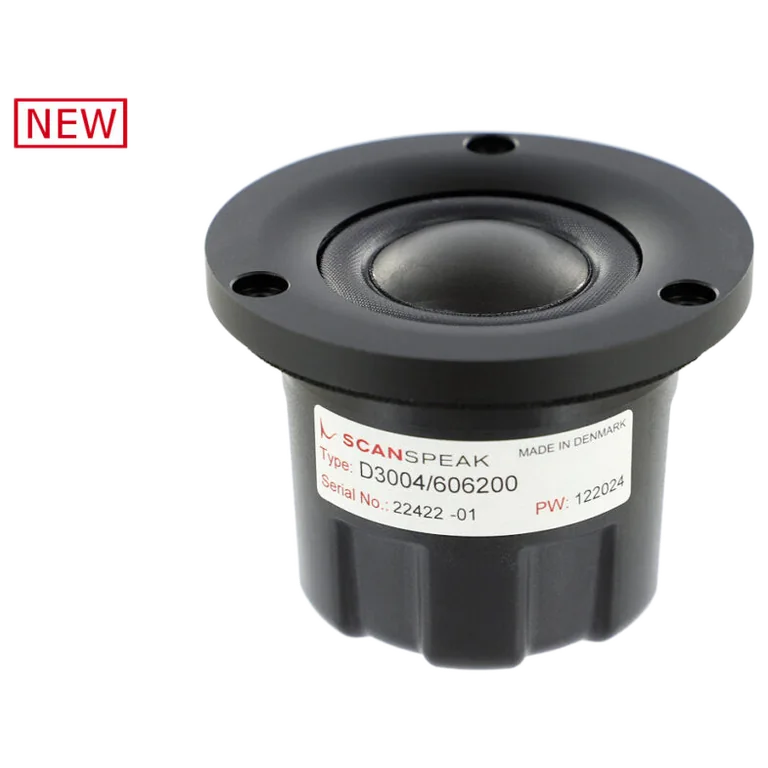

Scan-Speak D3004/606200 standard | Fs 430 Hz, 91.0 dB, Qts 0.380 | LoudspeakerLab

Thiele-Small parameters

Fs: 430 Hz; Qts: 0.380; Qes: 0.460; Qms: 2.200; Vas: 0.03 L; Sd: 7.0 cm²; Re: 3.00 Ω; Le: 0.02 mH; Sensitivity: 91.0 dB; Nominal Z: 4.0 Ω; Measured range: 102-20000 Hz

Driver quality scores

On-axis flatness 80 · DI tracking 42 · DI smoothness 35

Usable passband

Scored passband 1004 Hz–14.6 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• audiohobby — $204.00 EUR
• madisound — $248.00 USD
• solen — $347.65 CAD
• soundimports — $206.57 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Scan-Speak
