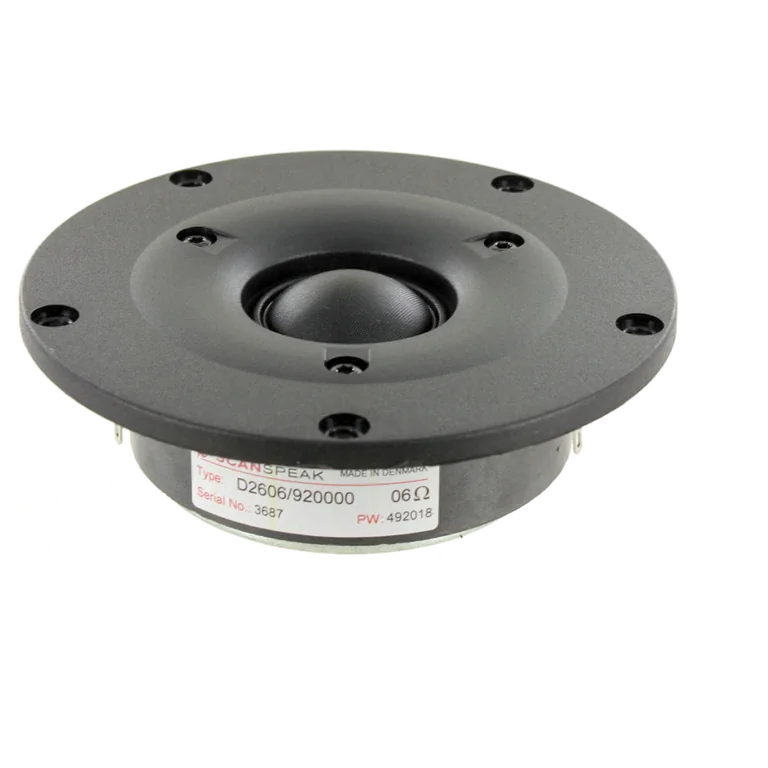

Scan-Speak D2606/920000 standard | Fs 1100 Hz, 91.5 dB, Qts 0.840 | LoudspeakerLab

Thiele-Small parameters

Fs: 1100 Hz; Qts: 0.840; Qes: 1.310; Qms: 2.360; Vas: 0.01 L; Sd: 7.1 cm²; Re: 4.60 Ω; Le: 0.04 mH; Sensitivity: 91.5 dB; Nominal Z: 6.0 Ω; Measured range: 223-20000 Hz

Driver quality scores

On-axis flatness 89 · DI tracking 53 · DI smoothness 32

Usable passband

Scored passband 2098 Hz–12.8 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• audioxcel — $39.95 EUR
• madisound — $47.80 USD
• solen — $59.75 CAD
• soundimports — $39.95 EUR
• theloudspeakerkit — $69.00 AUD

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Scan-Speak
