Scan-Speak 22W/8857T00 standard | Fs 23 Hz, 86.0 dB, Qts 0.300 | LoudspeakerLab

Scan-Speak 22W/8857T00 standard measurements on LoudspeakerLab. 86.0 dB sensitivity. Fs 23 Hz. Qts 0.300. Evidence grade C+ (57.0/100).

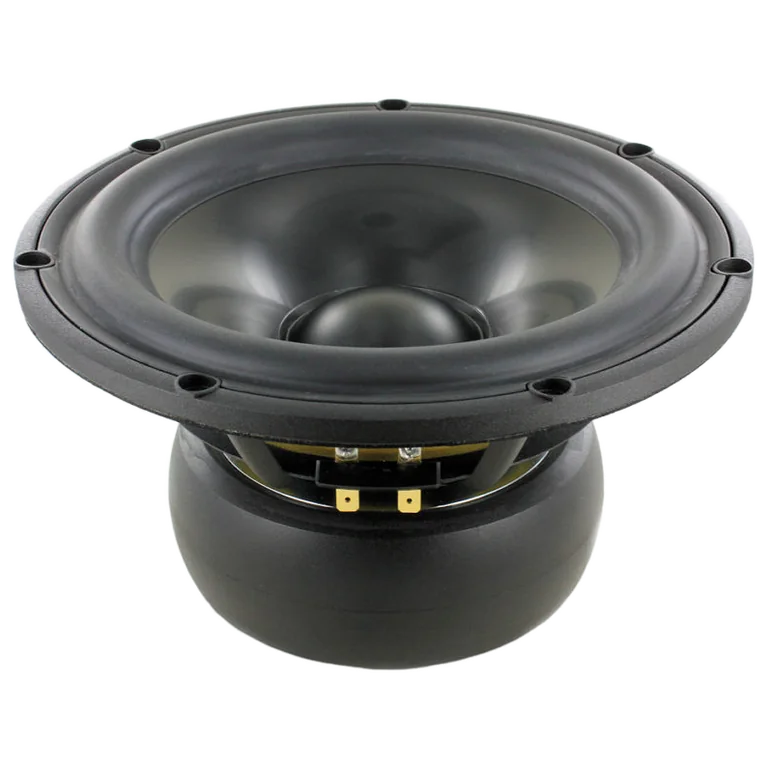

Preview

Thiele-Small parameters

Fs: 23 Hz; Qts: 0.300; Qes: 0.320; Qms: 4.900; Vas: 87.70 L; Sd: 220.0 cm²; Re: 6.20 Ω; Le: 0.35 mH; Sensitivity: 86.0 dB; Nominal Z: 8.0 Ω; Measured range: 23-16999 Hz

Driver quality scores

On-axis flatness 68 · DI tracking 79 · DI smoothness 62

Usable passband

Scored passband 48 Hz–2.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~41.0 L · Fb 33 Hz

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
