SB Audience 15SW600 standard | Fs 35 Hz, 96.0 dB, Qts 0.380 | LoudspeakerLab

SB Audience 15SW600 standard measurements on LoudspeakerLab. 96.0 dB sensitivity. Fs 35 Hz. Qts 0.380. Also known as SB Audience Bianco 15SW600....

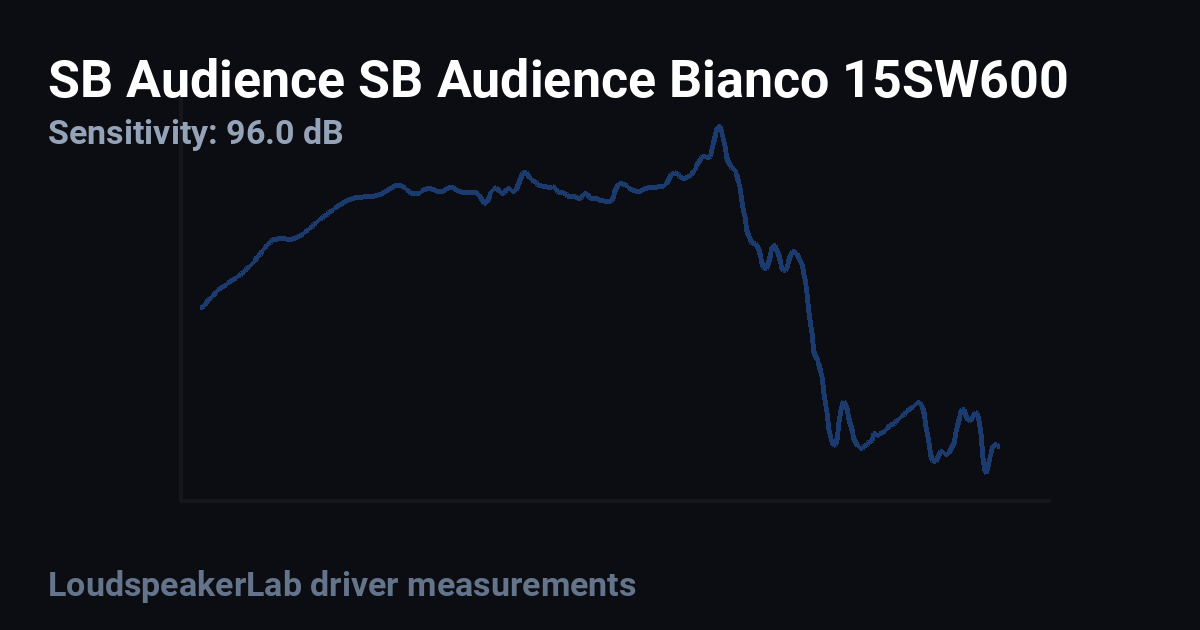

Preview

Thiele-Small parameters

Fs: 35 Hz; Qts: 0.380; Qes: 0.400; Qms: 7.800; Vas: 159.10 L; Sd: 860.5 cm²; Re: 5.40 Ω; Le: 1.51 mH; Sensitivity: 96.0 dB; Nominal Z: 5.2 Ω; Measured range: 10-20000 Hz

Driver quality scores

On-axis flatness 52 · DI tracking 30 · DI smoothness 5

Usable passband

Scored passband 56 Hz–1.4 kHz

Measurement coverage

Measured profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~114.3 L · Fb 41 Hz

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: A- (80.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SB Audience Bianco 15SW600

Manufacturer
