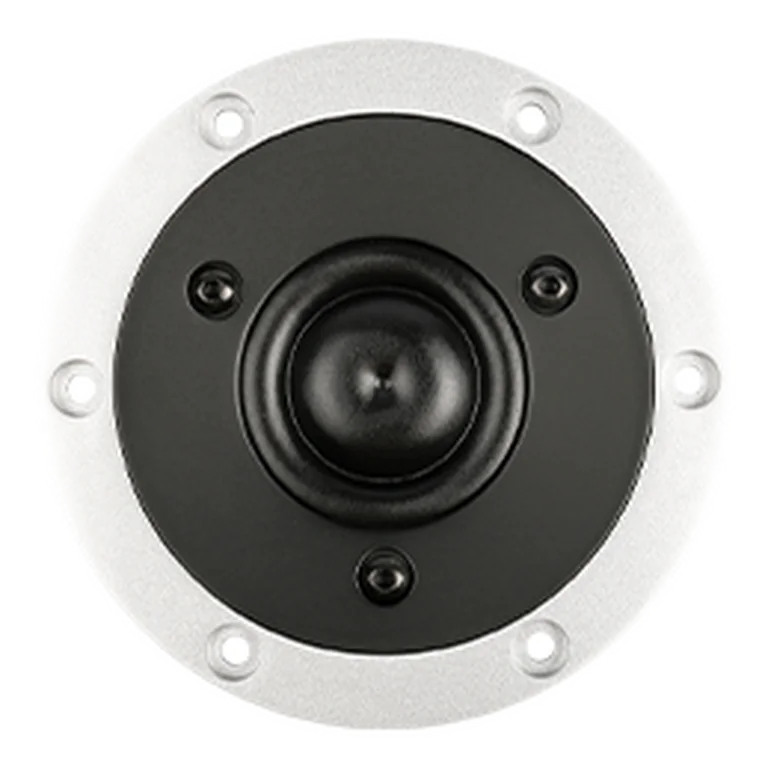

SB Acoustics TW29RN standard | Fs 700 Hz, 96.0 dB, Qts 0.490 | LoudspeakerLab

Thiele-Small parameters

Fs: 700 Hz; Qts: 0.490; Qes: 0.650; Qms: 2.100; Sd: 9.6 cm²; Re: 3.00 Ω; Le: 0.02 mH; Sensitivity: 96.0 dB; Nominal Z: 4.0 Ω; Measured range: 104-20000 Hz

Driver quality scores

On-axis flatness 75 · DI tracking 1 · DI smoothness 67

Usable passband

Scored passband 1004 Hz–15.9 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• audiohobby — $131.00 EUR
• rumoh — $174.95 EUR
• solen — $253.23 CAD
• soundimports — $144.59 EUR
• theloudspeakerkit — $289.00 AUD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SATORI TW29RN

Manufacturer

• SB Acoustics
