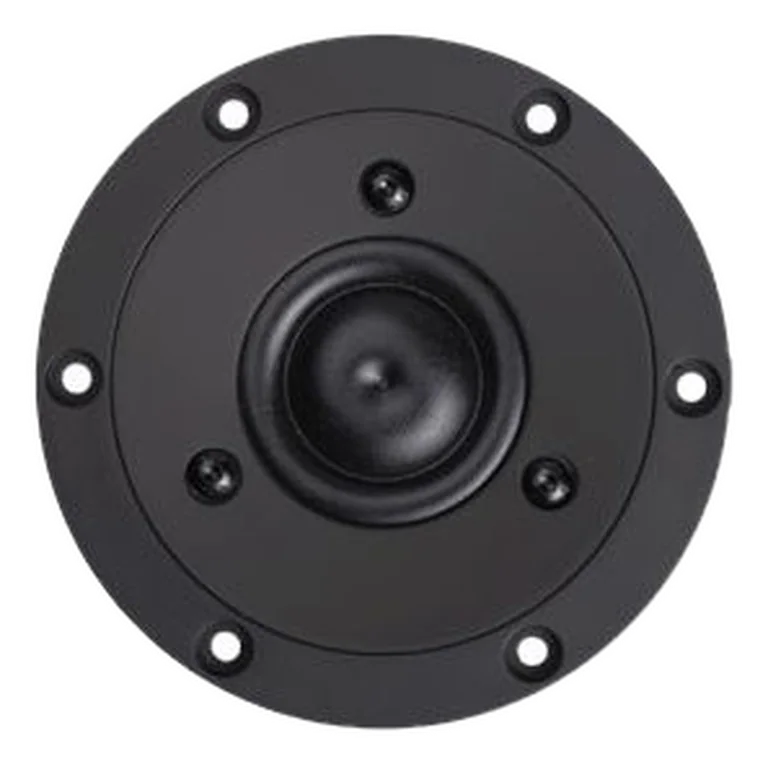

SB Acoustics TW29R-B standard | Fs 600 Hz, 92.0 dB, Qts 0.770 | LoudspeakerLab

Thiele-Small parameters

Fs: 600 Hz; Qts: 0.770; Qes: 1.240; Qms: 2.000; Sd: 9.6 cm²; Re: 3.00 Ω; Le: 0.02 mH; Sensitivity: 92.0 dB; Nominal Z: 4.0 Ω; Measured range: 103-20000 Hz

Driver quality scores

On-axis flatness 78 · DI tracking 31 · DI smoothness 50

Usable passband

Scored passband 1177 Hz–13.7 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• audiohobby — $118.00 EUR
• madisound — $157.20 USD
• rumoh — $155.50 EUR
• solen — $215.95 CAD
• soundimports — $125.58 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SATORI TW29R-B

Manufacturer

• SB Acoustics
