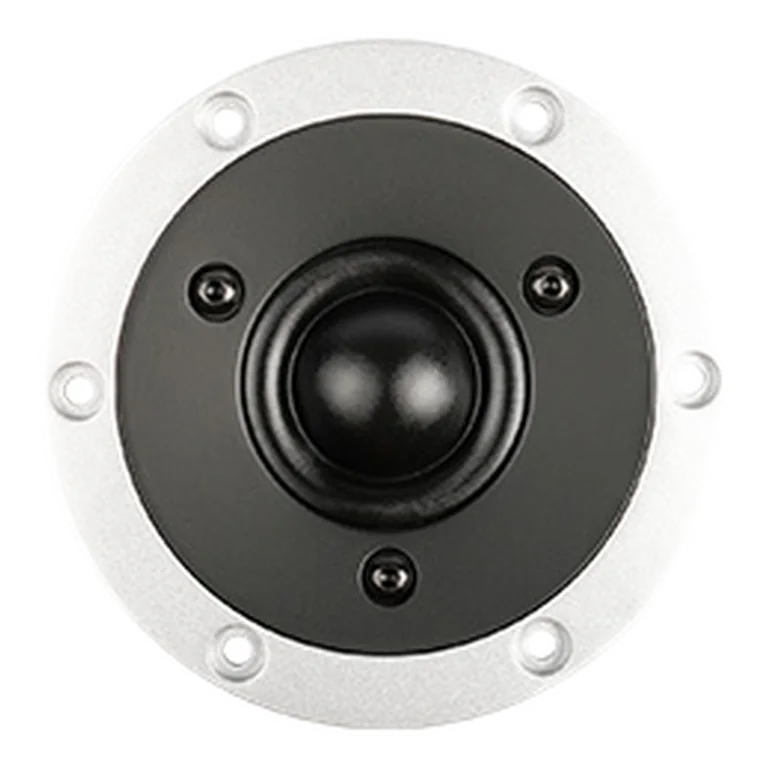

SB Acoustics TW29DN-8 standard | Fs 650 Hz, 93.0 dB, Qts 0.460 | LoudspeakerLab

Thiele-Small parameters

Fs: 650 Hz; Qts: 0.460; Qes: 0.650; Qms: 1.610; Sd: 9.6 cm²; Re: 6.20 Ω; Le: 0.04 mH; Sensitivity: 93.0 dB; Nominal Z: 8.0 Ω; Measured range: 103-20000 Hz

Driver quality scores

On-axis flatness 70 · DI tracking 5 · DI smoothness 35

Usable passband

Scored passband 1283 Hz–14.6 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• audiohobby — $115.00 EUR
• audiohobby — $115.00 EUR
• blackdotaudio — $713.76 PLN
• rumoh — $149.00 EUR
• rumoh — $149.00 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SATORI TW29DN-8

Manufacturer

• SB Acoustics
