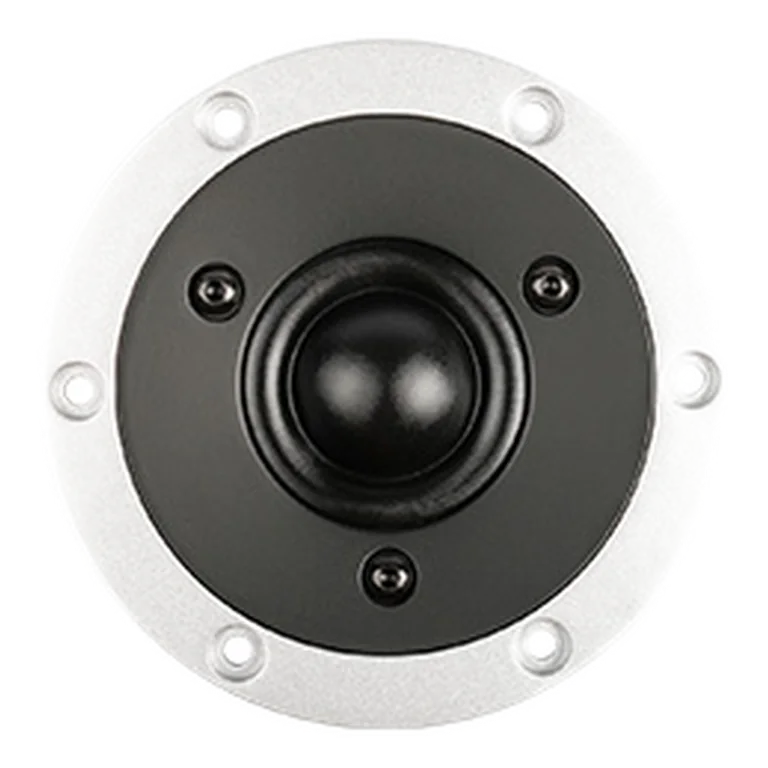

SB Acoustics TW29DN standard | Fs 650 Hz, 96.5 dB, Qts 0.430 | LoudspeakerLab

Thiele-Small parameters

Fs: 650 Hz; Qts: 0.430; Qes: 0.570; Qms: 1.660; Sd: 9.6 cm²; Re: 3.00 Ω; Le: 0.02 mH; Sensitivity: 96.5 dB; Nominal Z: 4.0 Ω; Measured range: 103-20000 Hz

Driver quality scores

On-axis flatness 74 · DI tracking 10 · DI smoothness 37

Usable passband

Scored passband 1321 Hz–14.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• audiohobby — $115.00 EUR
• rumoh — $149.00 EUR
• solen — $229.57 CAD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SATORI TW29DN

Manufacturer

• SB Acoustics
