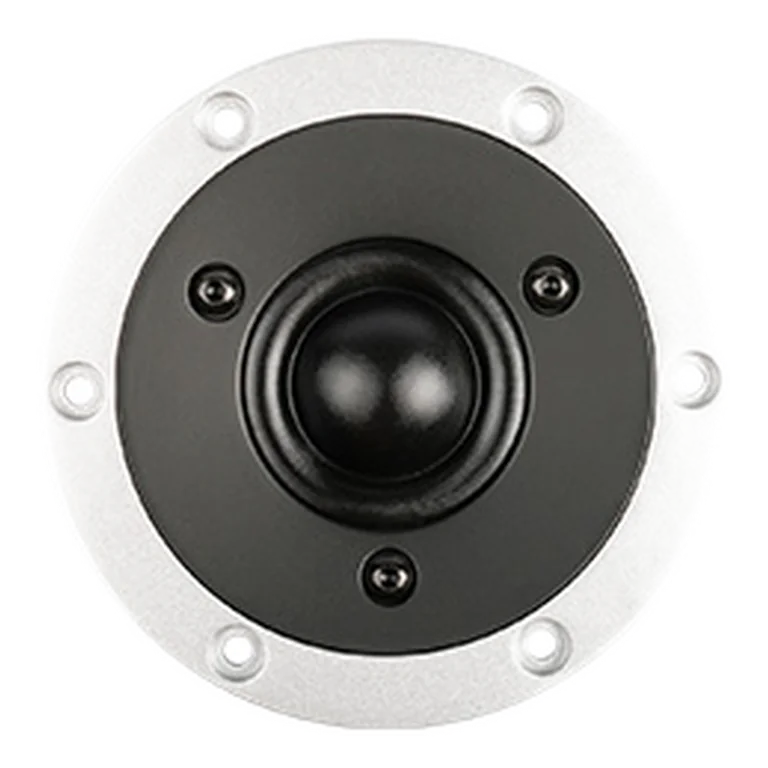

SB Acoustics TW29D standard | Fs 600 Hz, 93.0 dB, Qts 0.810 | LoudspeakerLab

Thiele-Small parameters

Fs: 600 Hz; Qts: 0.810; Qes: 1.270; Qms: 2.200; Sd: 9.6 cm²; Re: 3.00 Ω; Le: 0.02 mH; Sensitivity: 93.0 dB; Nominal Z: 4.0 Ω; Measured range: 103-20000 Hz

Driver quality scores

On-axis flatness 71 · DI tracking 18 · DI smoothness 36

Usable passband

Scored passband 1177 Hz–16.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• audiohobby — $115.00 EUR
• blackdotaudio — $646.55 PLN
• rumoh — $139.00 EUR
• solen — $207.95 CAD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SATORI TW29D

Manufacturer

• SB Acoustics
