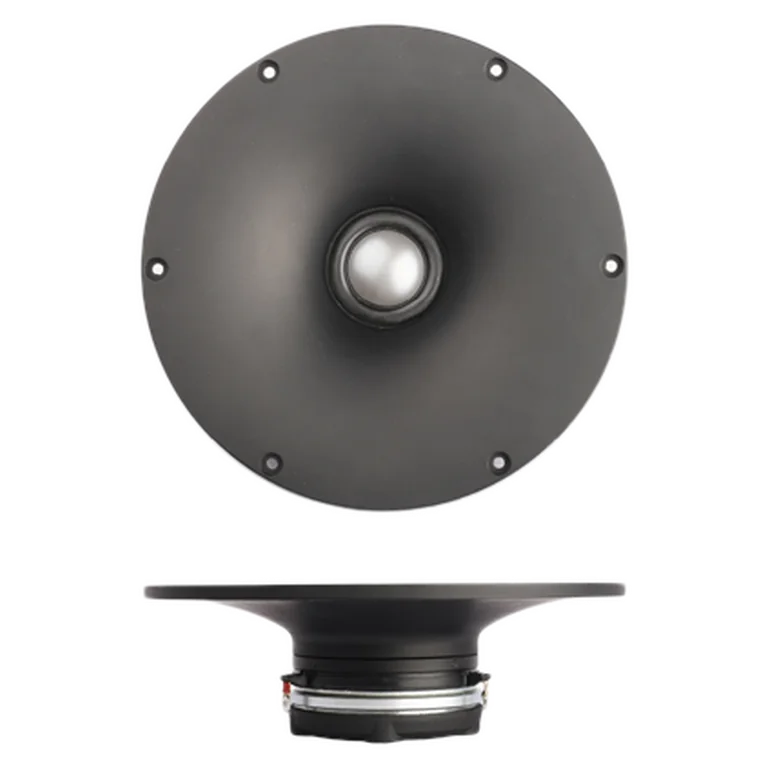

SB Acoustics TW29BNWG-8 standard | Fs 750 Hz, 94.0 dB, Qts 0.550 | LoudspeakerLab

Thiele-Small parameters

Fs: 750 Hz; Qts: 0.550; Qes: 0.800; Qms: 1.750; Sd: 9.6 cm²; Re: 6.20 Ω; Le: 0.04 mH; Sensitivity: 94.0 dB; Nominal Z: 8.0 Ω; Measured range: 105-20000 Hz

Driver quality scores

On-axis flatness 70 · DI tracking 91 · DI smoothness 80

Usable passband

Scored passband 1441 Hz–7.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• blackdotaudio — $2272.28 PLN
• madisound — $532.10 USD
• rumoh — $479.00 EUR
• solen — $931.00 CAD
• soundimports — $413.18 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SATORI TW29BNWG-8

Manufacturer

• SB Acoustics
