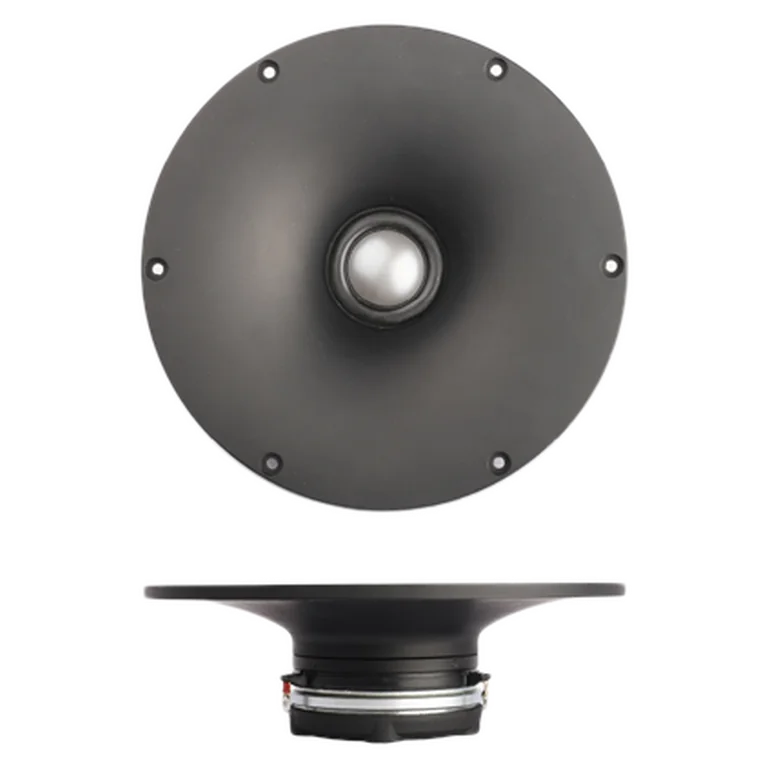

SB Acoustics TW29BNWG-4 standard | Fs 700 Hz, 97.0 dB, Qts 0.460 | LoudspeakerLab

Thiele-Small parameters

Fs: 700 Hz; Qts: 0.460; Qes: 0.600; Qms: 2.100; Sd: 9.6 cm²; Re: 3.00 Ω; Le: 0.02 mH; Sensitivity: 97.0 dB; Nominal Z: 4.0 Ω; Measured range: 103-20000 Hz

Driver quality scores

On-axis flatness 70 · DI tracking 83 · DI smoothness 77

Usable passband

Scored passband 1283 Hz–8.8 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• blackdotaudio — $2272.28 PLN
• madisound — $532.10 USD
• rumoh — $429.00 EUR
• solen — $931.00 CAD
• soundimports — $413.18 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SATORI TW29BNWG-4

Manufacturer

• SB Acoustics
