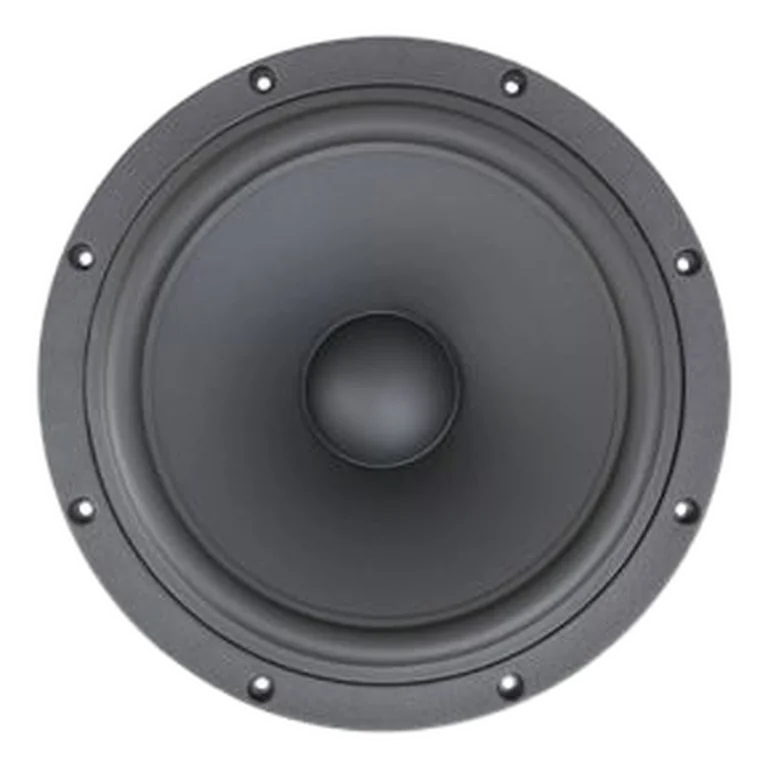

SB Acoustics SB34SWNRX-S75 standard | Fs 19 Hz, 88.0 dB, Qts 0.320 | LoudspeakerLab

Thiele-Small parameters

Fs: 19 Hz; Qts: 0.320; Qes: 0.340; Qms: 5.000; Vas: 164.00 L; Sd: 50.0 cm²; Re: 4.00 Ω; Le: 3.00 mH; Sensitivity: 88.0 dB; Nominal Z: 6.0 Ω; Measured range: 21-8922 Hz

Driver quality scores

On-axis flatness 47 · DI tracking 74 · DI smoothness 49

Usable passband

Scored passband 30 Hz–809 Hz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~84.9 L · Fb 26 Hz

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• solen — $290.82 CAD
• soundimports — $190.04 EUR
• theloudspeakerkit — $359.00 AUD

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SB34SWNRX-S75-6

Manufacturer

• SB Acoustics
