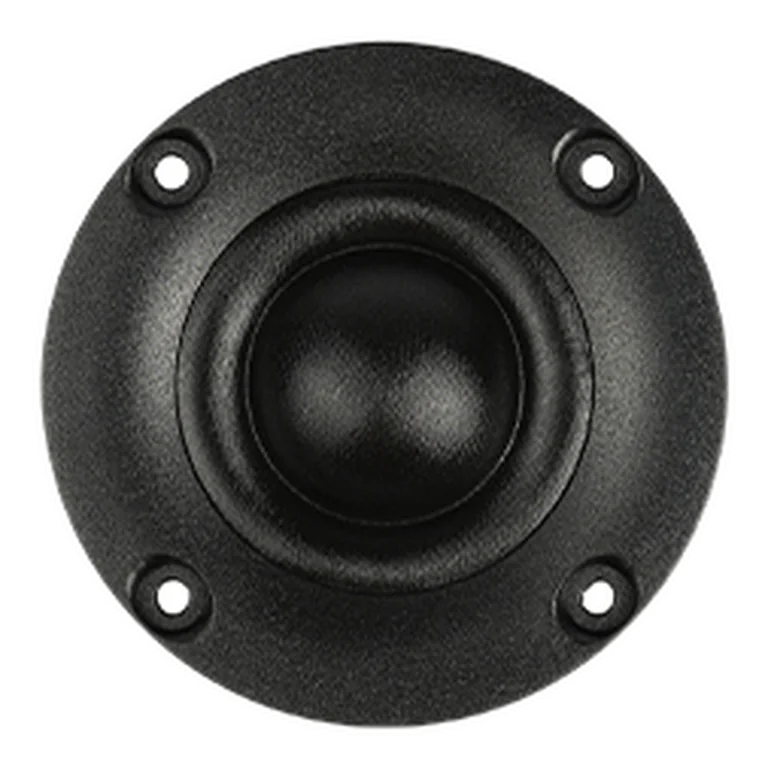

SB Acoustics SB29SDNC-C000 standard | Fs 630 Hz, 95.5 dB, Qts 0.490 | LoudspeakerLab

Thiele-Small parameters

Fs: 630 Hz; Qts: 0.490; Qes: 0.790; Qms: 1.300; Sd: 9.6 cm²; Re: 3.00 Ω; Le: 0.05 mH; Sensitivity: 95.5 dB; Nominal Z: 4.0 Ω; Measured range: 103-20000 Hz

Driver quality scores

On-axis flatness 75 · DI tracking 45 · DI smoothness 29

Usable passband

Scored passband 1247 Hz–15.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• madisound — $71.60 USD
• solen — $93.97 CAD
• soundimports — $60.29 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SB29SDNC-C000-4

Manufacturer

• SB Acoustics
