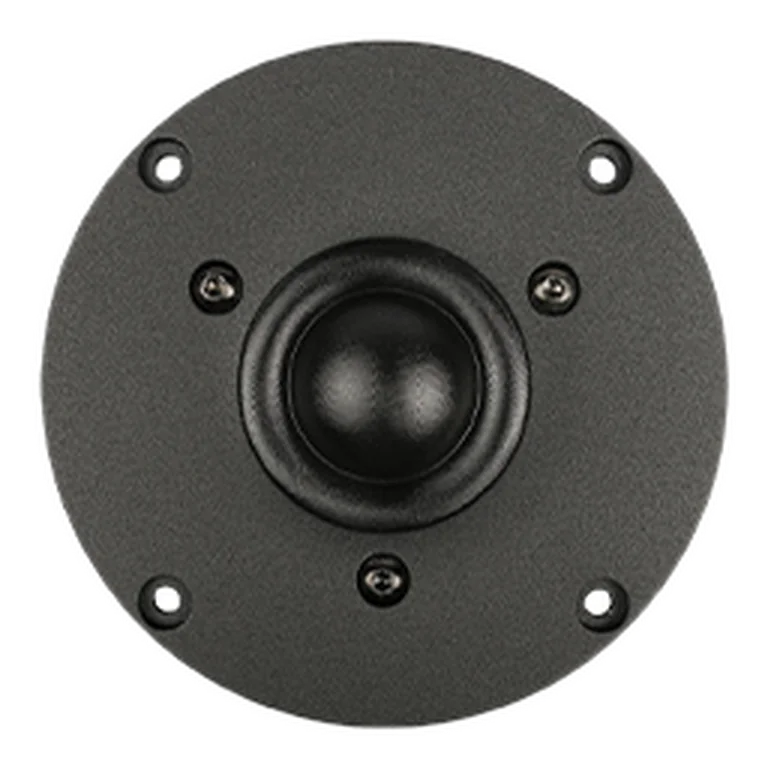

SB Acoustics SB29SDAC-C000 standard | Fs 600 Hz, 93.0 dB, Qts 0.800 | LoudspeakerLab

Thiele-Small parameters

Fs: 600 Hz; Qts: 0.800; Qes: 1.090; Qms: 2.940; Sd: 9.6 cm²; Re: 3.00 Ω; Le: 0.05 mH; Sensitivity: 93.0 dB; Nominal Z: 4.0 Ω; Measured range: 103-20000 Hz

Driver quality scores

On-axis flatness 77 · DI tracking 28 · DI smoothness 28

Usable passband

Scored passband 1247 Hz–14.3 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• madisound — $50.10 USD
• solen — $65.75 CAD
• soundimports — $37.15 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SB29SDAC-C000-4

Manufacturer

• SB Acoustics
