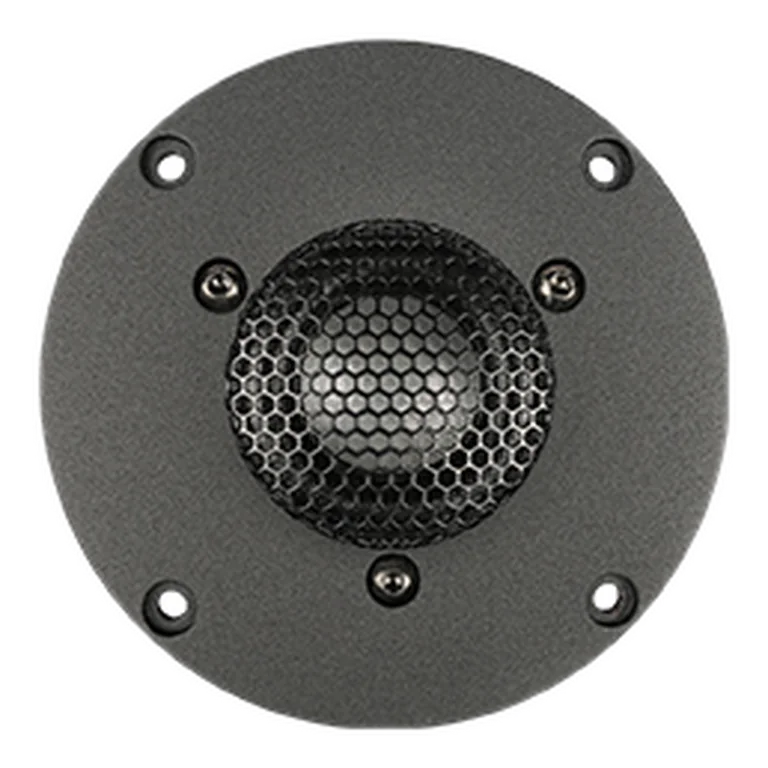

SB Acoustics SB29BAC-C000 standard | Fs 650 Hz, 93.0 dB, Qts 0.840 | LoudspeakerLab

Thiele-Small parameters

Fs: 650 Hz; Qts: 0.840; Qes: 1.220; Qms: 2.710; Sd: 9.6 cm²; Re: 3.00 Ω; Le: 0.05 mH; Sensitivity: 93.0 dB; Nominal Z: 4.0 Ω; Measured range: 123-20000 Hz

Driver quality scores

On-axis flatness 81 · DI tracking 56 · DI smoothness 49

Usable passband

Scored passband 1321 Hz–15.2 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• solen — $743.68 CAD
• soundimports — $235.50 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SB29BAC-C000-4

Manufacturer

• SB Acoustics
