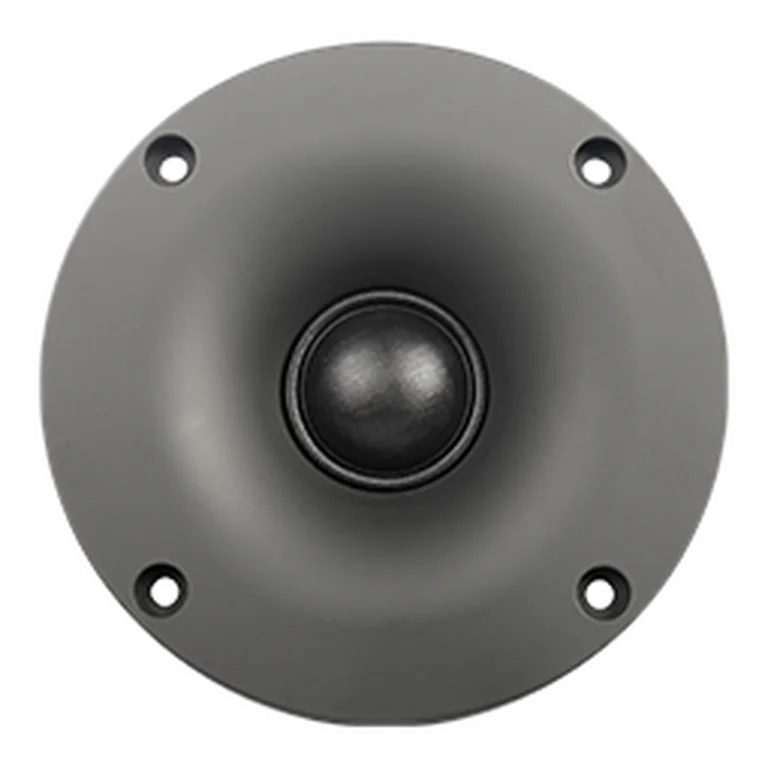

SB Acoustics SB26STWGC-4 standard | Fs 780 Hz, 93.0 dB, Qts 1.200 | LoudspeakerLab

Thiele-Small parameters

Fs: 780 Hz; Qts: 1.200; Qes: 2.100; Qms: 2.800; Sd: 6.2 cm²; Re: 3.20 Ω; Le: 0.04 mH; Sensitivity: 93.0 dB; Nominal Z: 4.0 Ω; Measured range: 103-20000 Hz

Driver quality scores

On-axis flatness 73 · DI tracking 85 · DI smoothness 50

Usable passband

Scored passband 1526 Hz–10.9 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• audiohobby — $66.50 EUR
• blackdotaudio — $389.44 PLN
• madisound — $95.40 USD
• rumoh — $82.25 EUR
• soundimports — $84.95 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• SB Acoustics
