SB Acoustics SB17CRC35-8 standard | Fs 28 Hz, 87.0 dB, Qts 0.340 | LoudspeakerLab

SB Acoustics SB17CRC35-8 standard measurements on LoudspeakerLab. 87.0 dB sensitivity. Fs 28 Hz. Qts 0.340. Evidence grade C+ (57.0/100).

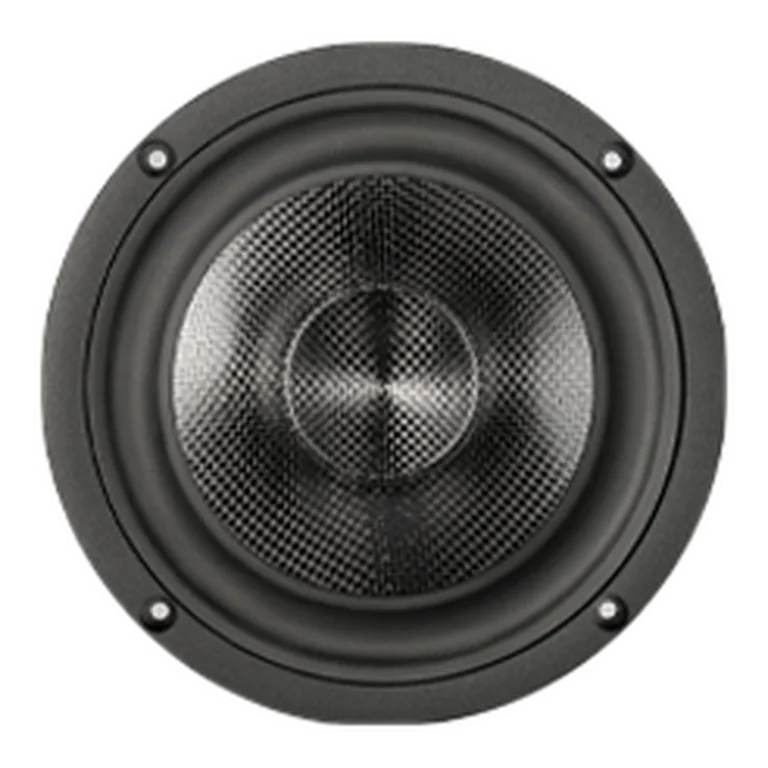

Preview

Thiele-Small parameters

Fs: 28 Hz; Qts: 0.340; Qes: 0.370; Qms: 3.900; Vas: 48.00 L; Sd: 118.0 cm²; Re: 5.70 Ω; Le: 0.15 mH; Sensitivity: 87.0 dB; Nominal Z: 8.0 Ω; Measured range: 22-19165 Hz

Driver quality scores

On-axis flatness 59 · DI tracking 26 · DI smoothness 29

Usable passband

Scored passband 53 Hz–4.3 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~27.8 L · Fb 36 Hz

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer
