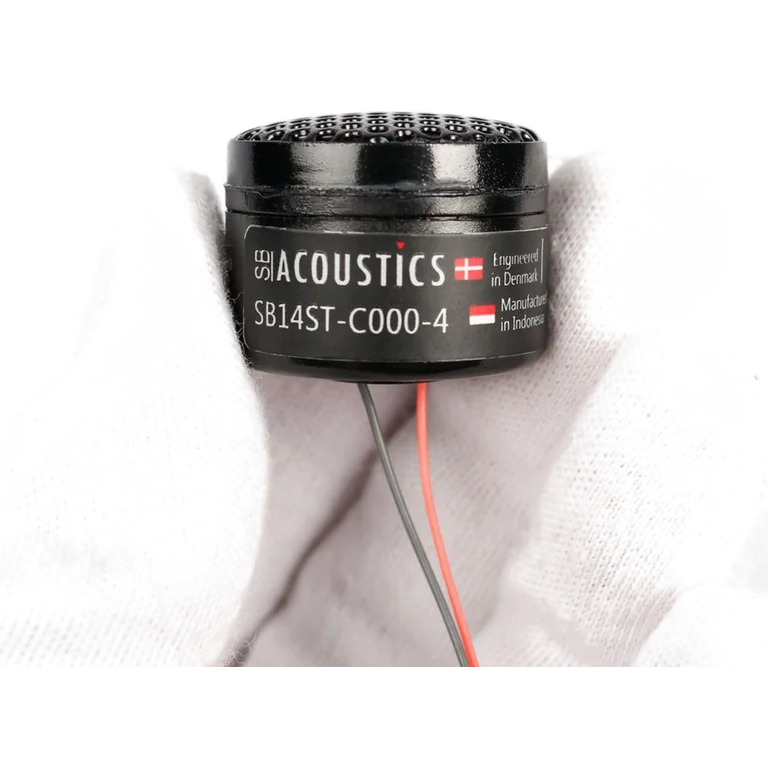

SB Acoustics SB14ST-C000 standard | Fs 1300 Hz, 86.0 dB | LoudspeakerLab

Thiele-Small parameters

Fs: 1300 Hz; Sd: 2.2 cm²; Re: 4.00 Ω; Le: 0.04 mH; Sensitivity: 86.0 dB; Nominal Z: 4.0 Ω; Measured range: 103-20000 Hz

Driver quality scores

On-axis flatness 72 · DI tracking 54 · DI smoothness 48

Usable passband

Scored passband 1004 Hz–20.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• madisound — $30.80 USD
• solen — $40.41 CAD
• soundimports — $23.51 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (55.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SB14ST-C000-4

Manufacturer

• SB Acoustics
