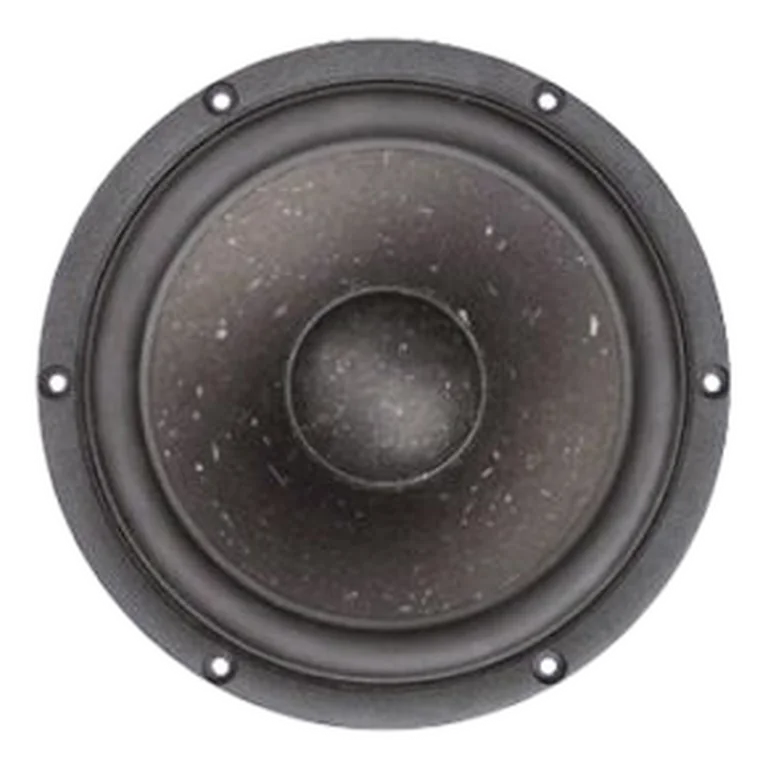

SB Acoustics MW19P-4 standard | Fs 29 Hz, 91.5 dB, Qts 0.240 | LoudspeakerLab

Thiele-Small parameters

Fs: 29 Hz; Qts: 0.240; Qes: 0.260; Qms: 4.530; Vas: 61.00 L; Sd: 158.0 cm²; Re: 3.40 Ω; Le: 0.14 mH; Sensitivity: 91.5 dB; Nominal Z: 4.0 Ω; Measured range: 21-19125 Hz

Driver quality scores

On-axis flatness 47 · DI tracking 0 · DI smoothness 0

Usable passband

Scored passband 63 Hz–11.5 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~19.7 L · Fb 53 Hz

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• audiohobby — $174.00 EUR
• blackdotaudio — $904.15 PLN
• madisound — $211.70 USD
• rumoh — $209.41 EUR
• solen — $307.30 CAD

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SATORI MW19P-4

Manufacturer

• SB Acoustics
