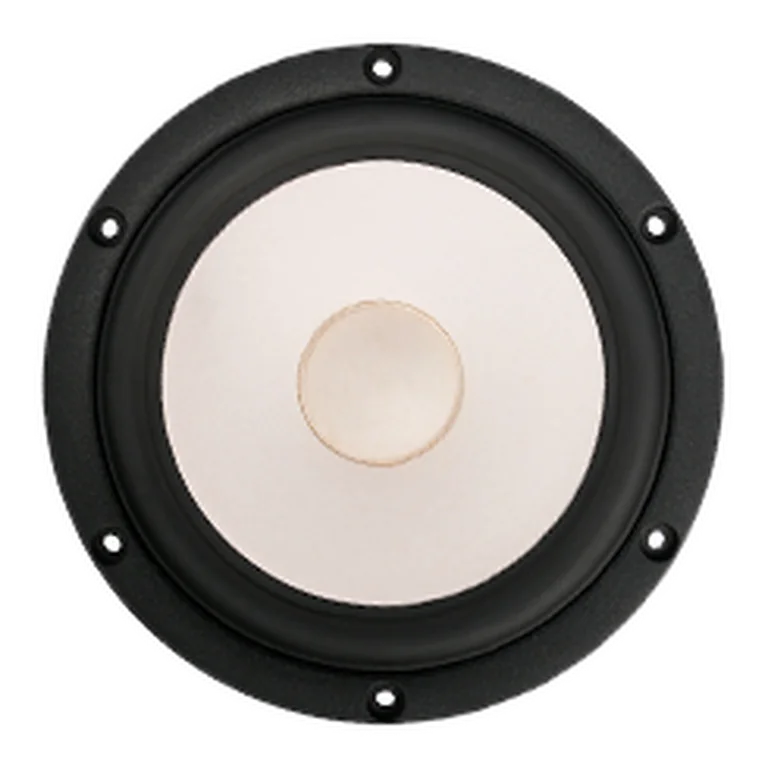

SB Acoustics MW16PNW-8 standard | Fs 29 Hz, 88.0 dB, Qts 0.320 | LoudspeakerLab

Thiele-Small parameters

Fs: 29 Hz; Qts: 0.320; Qes: 0.340; Qms: 4.720; Vas: 49.90 L; Sd: 119.0 cm²; Re: 6.20 Ω; Le: 0.20 mH; Sensitivity: 88.0 dB; Nominal Z: 8.0 Ω; Measured range: 21-19181 Hz

Driver quality scores

On-axis flatness 48 · DI tracking 0 · DI smoothness 14

Usable passband

Scored passband 58 Hz–12.6 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~25.8 L · Fb 40 Hz

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• audiohobby — $136.00 EUR
• blackdotaudio — $796.48 PLN
• rumoh — $184.45 EUR
• solen — $270.68 CAD
• soundimports — $144.59 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SATORI MW16PNW-8

Manufacturer

• SB Acoustics
