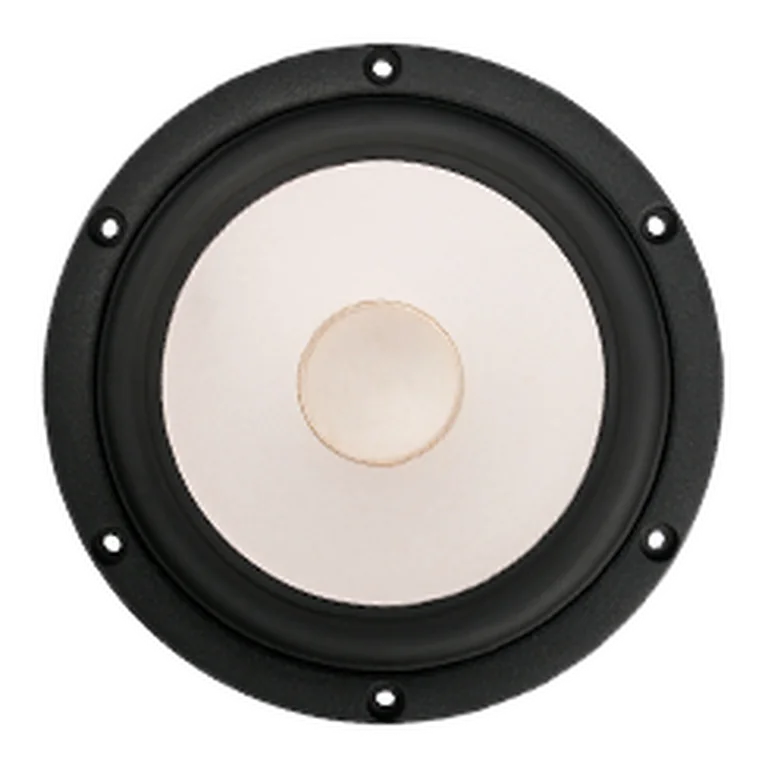

SB Acoustics MW16PNW-4 standard | Fs 28 Hz, 91.0 dB, Qts 0.270 | LoudspeakerLab

Thiele-Small parameters

Fs: 28 Hz; Qts: 0.270; Qes: 0.290; Qms: 4.500; Vas: 51.80 L; Sd: 119.0 cm²; Re: 3.40 Ω; Le: 0.15 mH; Sensitivity: 91.0 dB; Nominal Z: 4.0 Ω; Measured range: 21-19165 Hz

Driver quality scores

On-axis flatness 49 · DI tracking 32 · DI smoothness 28

Usable passband

Scored passband 60 Hz–4.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~20.1 L · Fb 45 Hz

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• audiohobby — $136.00 EUR
• blackdotaudio — $796.48 PLN
• rumoh — $184.45 EUR
• solen — $270.68 CAD
• soundimports — $144.59 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SATORI MW16PNW-4

Manufacturer

• SB Acoustics
