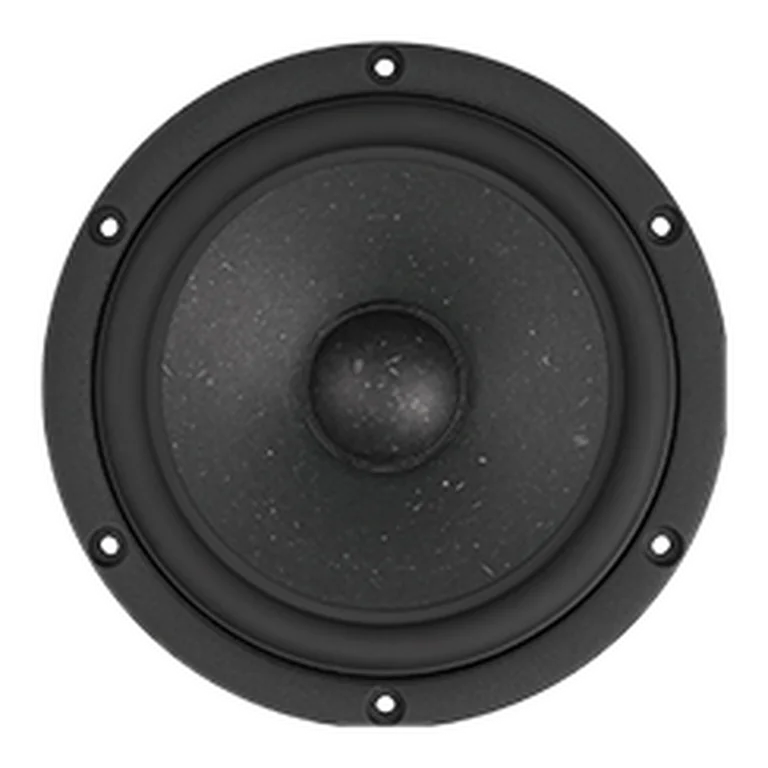

SB Acoustics MW16P-4 standard | Fs 28 Hz, 90.5 dB, Qts 0.270 | LoudspeakerLab

Thiele-Small parameters

Fs: 28 Hz; Qts: 0.270; Qes: 0.280; Qms: 5.000; Vas: 50.20 L; Sd: 119.0 cm²; Re: 3.40 Ω; Le: 0.15 mH; Sensitivity: 90.5 dB; Nominal Z: 4.0 Ω; Measured range: 20-19097 Hz

Driver quality scores

On-axis flatness 48 · DI tracking 0 · DI smoothness 0

Usable passband

Scored passband 58 Hz–15.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~19.5 L · Fb 45 Hz

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• audiohobby — $136.00 EUR
• blackdotaudio — $796.48 PLN
• madisound — $186.50 USD
• rumoh — $184.45 EUR
• solen — $270.68 CAD

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SATORI MW16P-4

Manufacturer

• SB Acoustics
