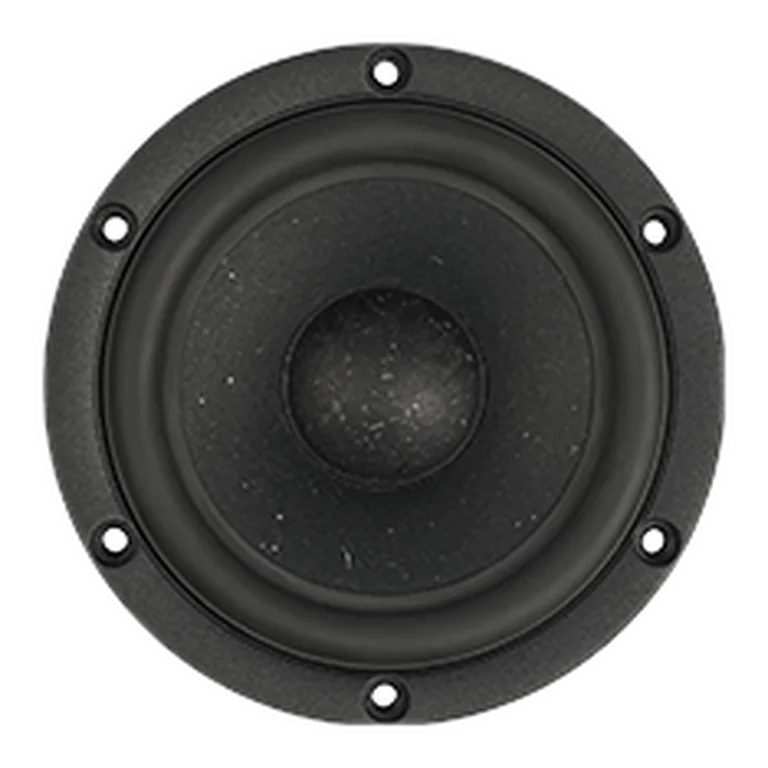

SB Acoustics MW13P-8 standard | Fs 42 Hz, 87.0 dB, Qts 0.300 | LoudspeakerLab

Thiele-Small parameters

Fs: 42 Hz; Qts: 0.300; Qes: 0.330; Qms: 3.550; Vas: 15.00 L; Sd: 70.0 cm²; Re: 6.00 Ω; Le: 0.15 mH; Sensitivity: 87.0 dB; Nominal Z: 8.0 Ω; Measured range: 21-19011 Hz

Driver quality scores

On-axis flatness 50 · DI tracking 0 · DI smoothness 13

Usable passband

Scored passband 70 Hz–16.6 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~7.0 L · Fb 60 Hz

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• audiohobby — $123.00 EUR
• blackdotaudio — $750.01 PLN
• madisound — $163.30 USD
• rumoh — $173.72 EUR
• solen — $254.91 CAD

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SATORI MW13P-8

Manufacturer

• SB Acoustics
