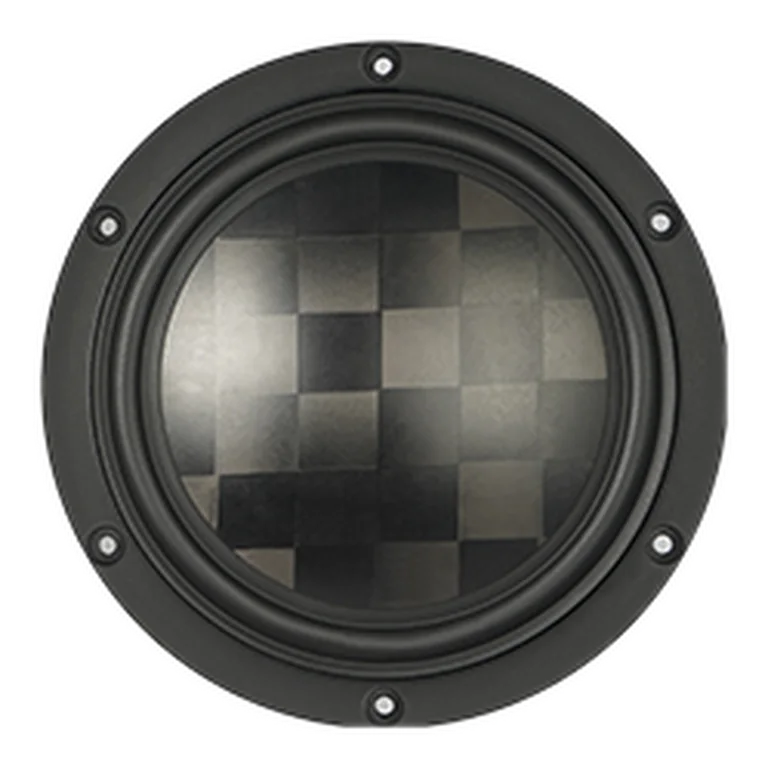

SB Acoustics MR16TX-8 standard | Fs 35 Hz, 89.0 dB, Qts 0.310 | LoudspeakerLab

Thiele-Small parameters

Fs: 35 Hz; Qts: 0.310; Qes: 0.320; Qms: 6.470; Vas: 38.90 L; Sd: 117.0 cm²; Re: 6.20 Ω; Le: 0.11 mH; Sensitivity: 89.0 dB; Nominal Z: 8.0 Ω; Measured range: 21-19271 Hz

Driver quality scores

On-axis flatness 65 · DI tracking 40 · DI smoothness 30

Usable passband

Scored passband 180 Hz–4.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~19.1 L · Fb 49 Hz

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• audiohobby — $262.00 EUR
• blackdotaudio — $1536.33 PLN
• madisound — $334.50 USD
• solen — $522.14 CAD
• soundimports — $272.69 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SATORI MR16TX-8

Manufacturer

• SB Acoustics
