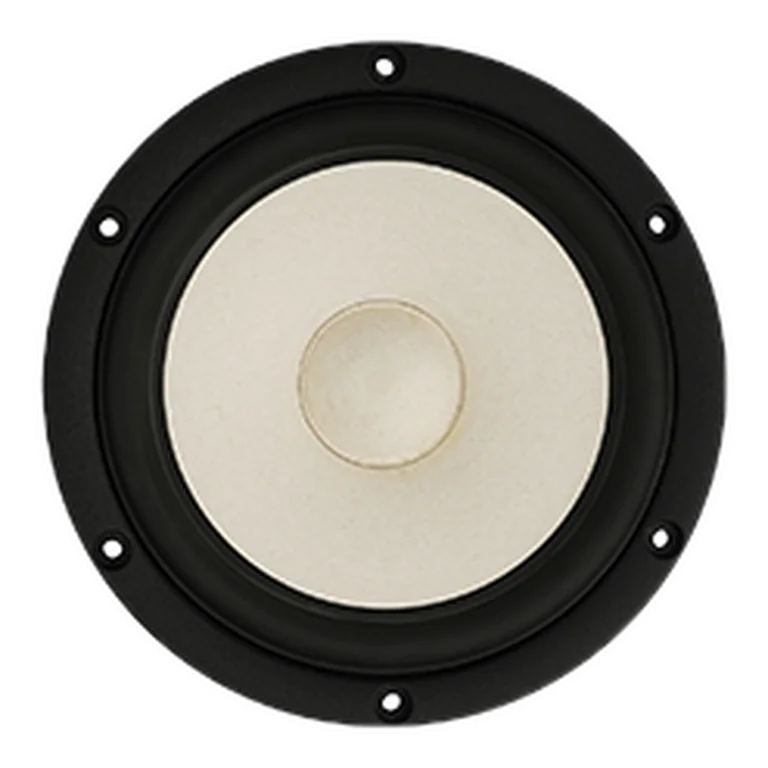

SB Acoustics MR16PNW-8 standard | Fs 31 Hz, 88.5 dB, Qts 0.320 | LoudspeakerLab

Thiele-Small parameters

Fs: 31 Hz; Qts: 0.320; Qes: 0.340; Qms: 5.750; Vas: 44.80 L; Sd: 119.0 cm²; Re: 6.20 Ω; Le: 0.11 mH; Sensitivity: 88.5 dB; Nominal Z: 8.0 Ω; Measured range: 202-19165 Hz

Driver quality scores

On-axis flatness 50 · DI tracking 0 · DI smoothness 2

Usable passband

Scored passband 44 Hz–11.4 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~23.2 L · Fb 42 Hz

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• audiohobby — $152.00 EUR
• blackdotaudio — $882.15 PLN
• rumoh — $204.29 EUR
• solen — $299.80 CAD
• soundimports — $156.98 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SATORI MR16PNW-8

Manufacturer

• SB Acoustics
