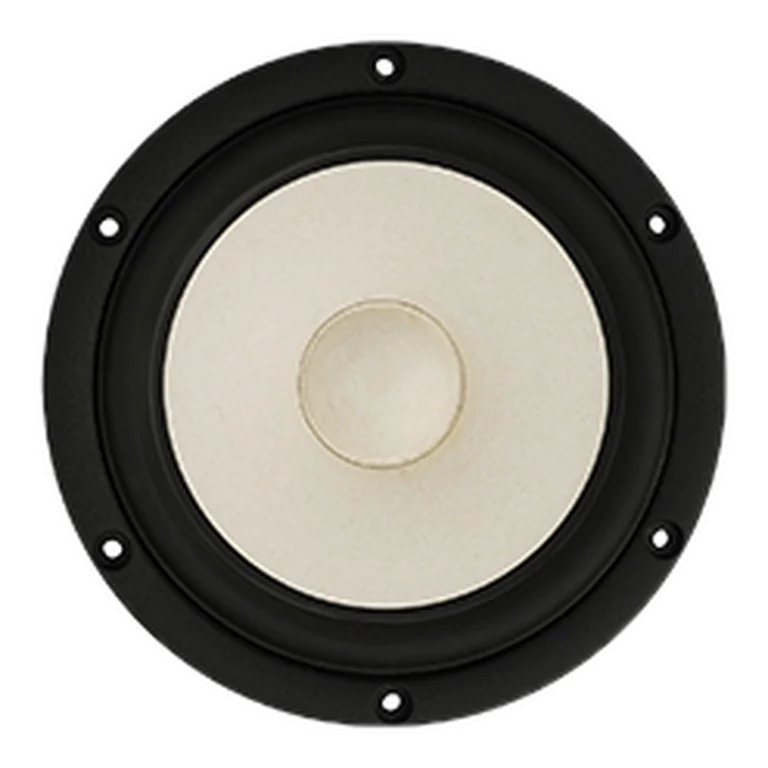

SB Acoustics MR16PNW-4 standard | Fs 31 Hz, 92.5 dB, Qts 0.250 | LoudspeakerLab

Thiele-Small parameters

Fs: 31 Hz; Qts: 0.250; Qes: 0.260; Qms: 4.850; Vas: 47.20 L; Sd: 119.0 cm²; Re: 3.20 Ω; Le: 0.11 mH; Sensitivity: 92.5 dB; Nominal Z: 4.0 Ω; Measured range: 202-19177 Hz

Driver quality scores

On-axis flatness 49 · DI tracking 0 · DI smoothness 12

Usable passband

Scored passband 45 Hz–11.7 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~16.4 L · Fb 54 Hz

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• audiohobby — $152.00 EUR
• blackdotaudio — $882.15 PLN
• rumoh — $204.29 EUR
• solen — $299.80 CAD
• soundimports — $156.98 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SATORI MR16PNW-4

Manufacturer

• SB Acoustics
