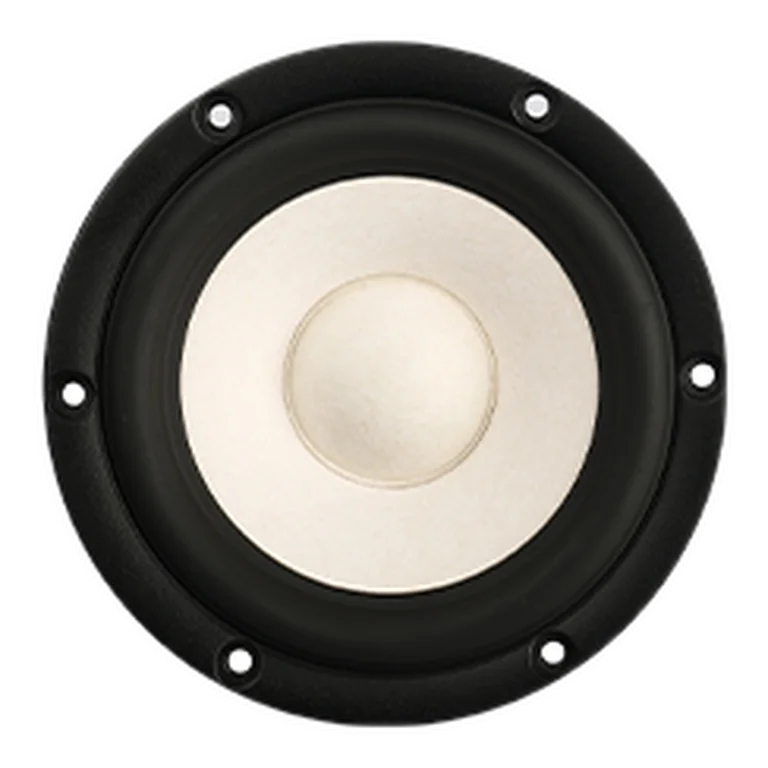

SB Acoustics MR13PNW-8 standard | Fs 47 Hz, 88.0 dB, Qts 0.300 | LoudspeakerLab

Thiele-Small parameters

Fs: 47 Hz; Qts: 0.300; Qes: 0.320; Qms: 4.580; Vas: 12.90 L; Sd: 70.0 cm²; Re: 6.80 Ω; Le: 0.11 mH; Sensitivity: 88.0 dB; Nominal Z: 8.0 Ω; Measured range: 202-19165 Hz

Driver quality scores

On-axis flatness 50 · DI tracking 0 · DI smoothness 0

Usable passband

Scored passband 175 Hz–20.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~6.0 L · Fb 68 Hz

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• audiohobby — $137.00 EUR
• blackdotaudio — $815.23 PLN
• rumoh — $188.81 EUR
• solen — $277.06 CAD
• soundimports — $148.72 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SATORI MR13PNW-8

Manufacturer

• SB Acoustics
