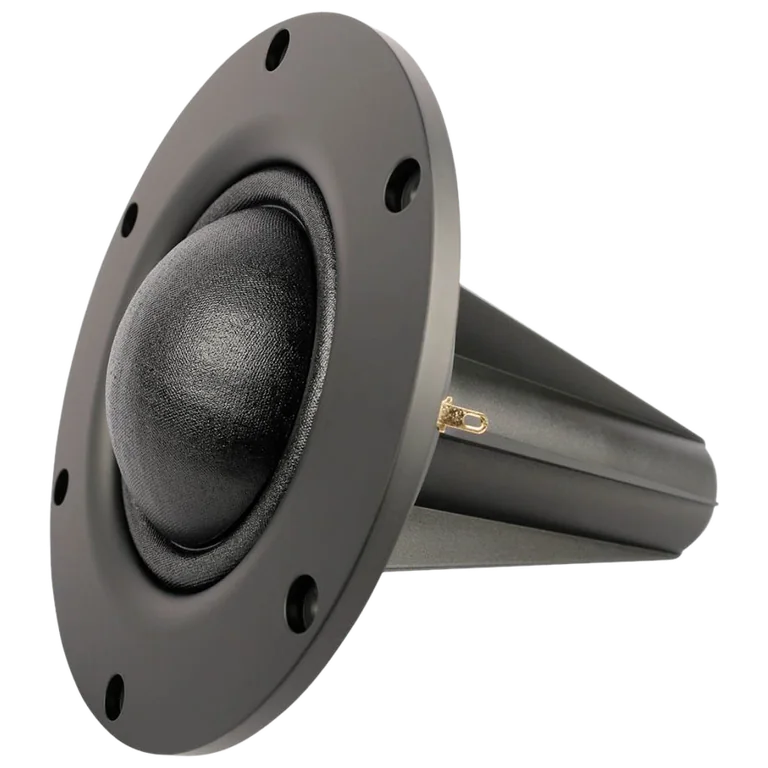

SB Acoustics MD60N-6 standard | Fs 400 Hz, 95.0 dB, Qts 0.509 | LoudspeakerLab

Thiele-Small parameters

Fs: 400 Hz; Qts: 0.509; Qes: 0.804; Qms: 1.388; Sd: 32.0 cm²; Re: 5.30 Ω; Le: 0.14 mH; Sensitivity: 95.0 dB; Nominal Z: 6.0 Ω; Measured range: 103-20000 Hz

Driver quality scores

On-axis flatness 76 · DI tracking 56 · DI smoothness 45

Usable passband

Scored passband 588 Hz–6.6 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• IEC baffle (spec_sheet)

Where to buy

• blackdotaudio — $795.83 PLN
• madisound — $186.40 USD
• rumoh — $174.90 EUR
• solen — $270.48 CAD
• soundimports — $144.59 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SATORI MD60N-6

Manufacturer

• SB Acoustics
