Prv audio WGP14-25S standard | Fs 1447 Hz, 109.0 dB, Qts 0.533 | LoudspeakerLab

Prv audio WGP14-25S standard measurements on LoudspeakerLab. 109.0 dB sensitivity. Fs 1447 Hz. Qts 0.533. Also known as D290Py-S WGP14-25S waveguide....

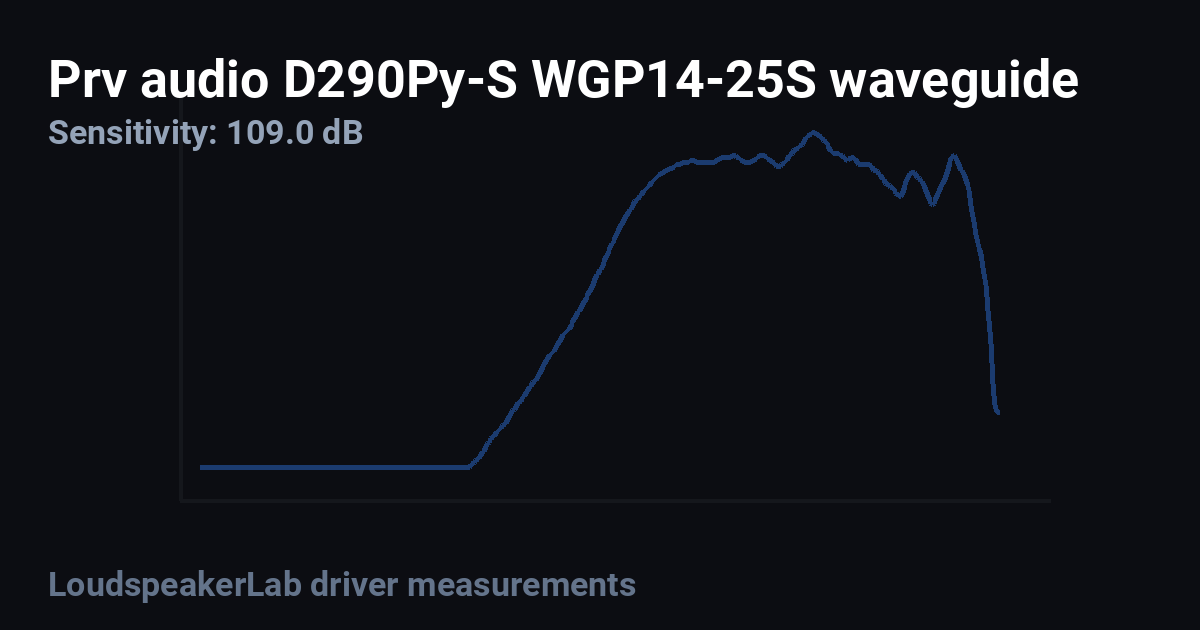

Preview

Thiele-Small parameters

Fs: 1447 Hz; Qts: 0.533; Qes: 0.899; Qms: 1.307; Re: 5.72 Ω; Sensitivity: 109.0 dB; Nominal Z: 5.9 Ω; Measured range: 203-19181 Hz

Driver quality scores

On-axis flatness 63

Usable passband

Scored passband 2800 Hz–7.9 kHz

Measurement coverage

Measured profiles

Measurement profiles

uploaded measurement (measured)

Where to buy

soundimports — $77.64 EUR

Measurement quality

LoudspeakerLab evidence grade: B (68.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

D290Py-S WGP14-25S waveguide

Manufacturer

Prv audio
