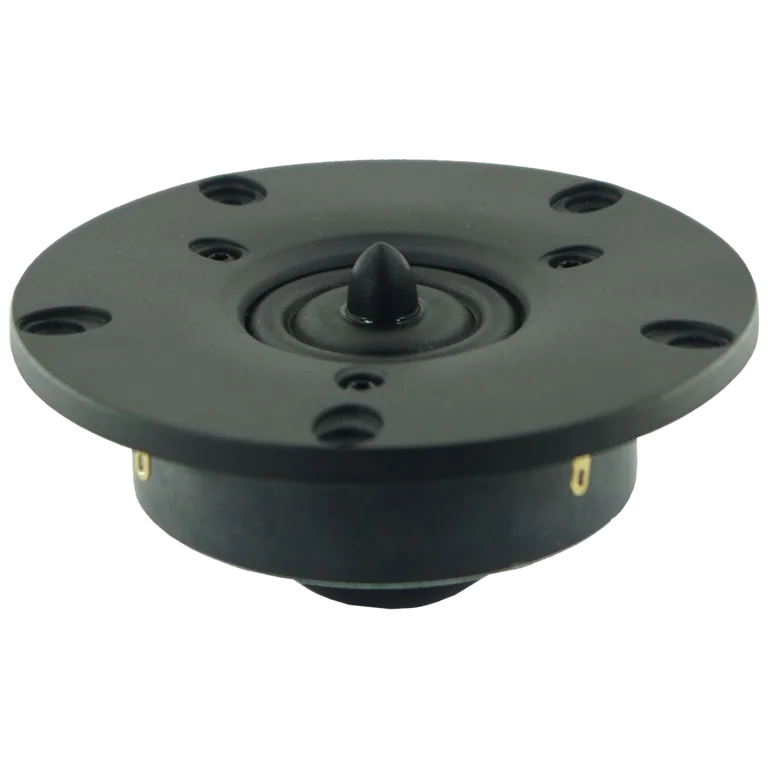

Peerless XT25TG30-04 standard | Fs 440 Hz, 91.5 dB, Qts 0.440 | LoudspeakerLab

Thiele-Small parameters

Fs: 440 Hz; Qts: 0.440; Qes: 0.539; Qms: 2.360; Vas: 0.04 L; Sd: 8.2 cm²; Re: 3.10 Ω; Le: 0.01 mH; Sensitivity: 91.5 dB; Nominal Z: 3.5 Ω; Measured range: 200-40000 Hz

Driver quality scores

On-axis flatness 75 · DI tracking 40 · DI smoothness 20

Usable passband

Scored passband 1004 Hz–13.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Public designs

1 public loudspeaker design on LoudspeakerLab use this driver.

• 2 way peerless xt25 & HDS-P830869

Where to buy

• blackdotaudio — $214.79 PLN
• loudspeakershop — $199.00 PLN
• parts_express — $39.98 USD
• soundimports — $49.95 EUR
• theloudspeakerkit — $79.50 AUD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Peerless
