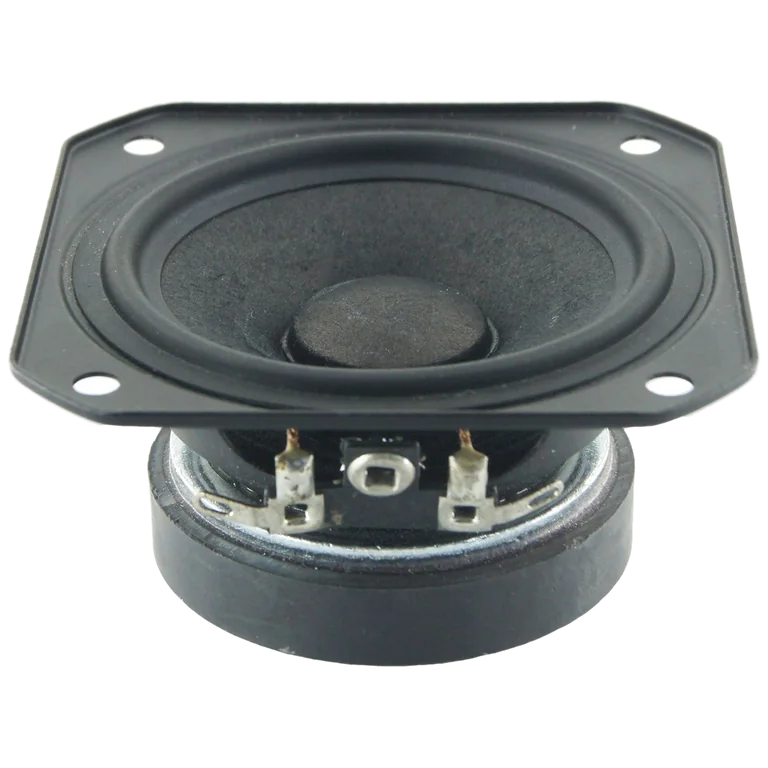

Peerless TC7FD00-04 standard | Fs 160 Hz, 85.2 dB, Qts 1.100 | LoudspeakerLab

Thiele-Small parameters

Fs: 160 Hz; Qts: 1.100; Qes: 1.480; Qms: 3.970; Vas: 0.39 L; Sd: 22.1 cm²; Re: 3.50 Ω; Le: 0.05 mH; Sensitivity: 85.2 dB; Nominal Z: 3.8 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 80 · DI tracking 8 · DI smoothness 34

Usable passband

Scored passband 170 Hz–11.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~1.0 L

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• blackdotaudio — $85.79 PLN
• parts_express — $9.07 USD
• soundimports — $16.49 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Peerless
