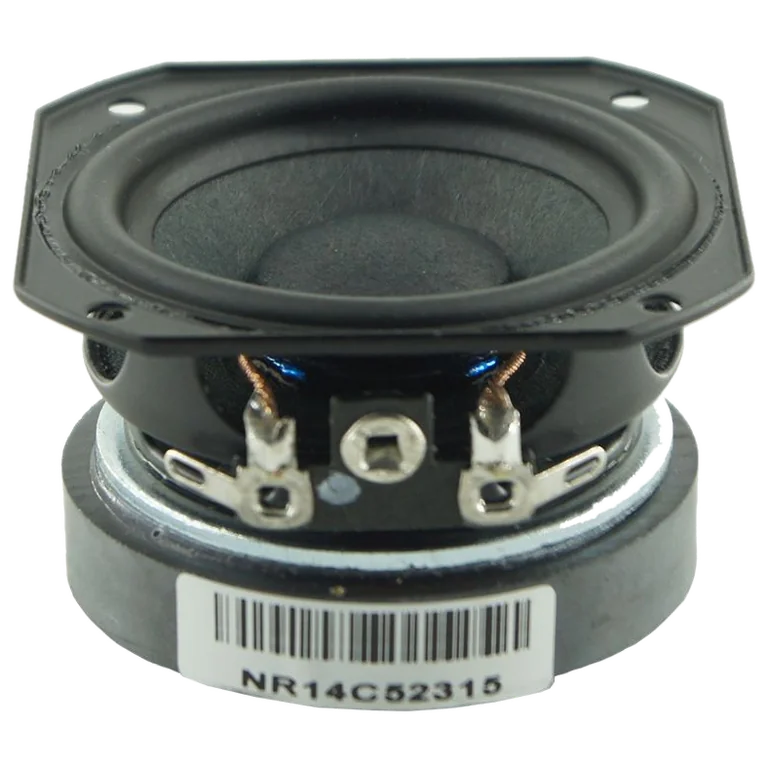

Peerless TC6FD00-04 standard | Fs 180 Hz, 83.8 dB, Qts 1.000 | LoudspeakerLab

Thiele-Small parameters

Fs: 180 Hz; Qts: 1.000; Qes: 1.360; Qms: 4.250; Vas: 0.19 L; Sd: 15.2 cm²; Re: 3.60 Ω; Le: 0.05 mH; Sensitivity: 83.8 dB; Nominal Z: 4.0 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 85 · DI tracking 3 · DI smoothness 32

Usable passband

Scored passband 220 Hz–11.4 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~0.4 L

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $16.29 USD
• soundimports — $15.66 EUR
• theloudspeakerkit — $34.50 AUD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Peerless
