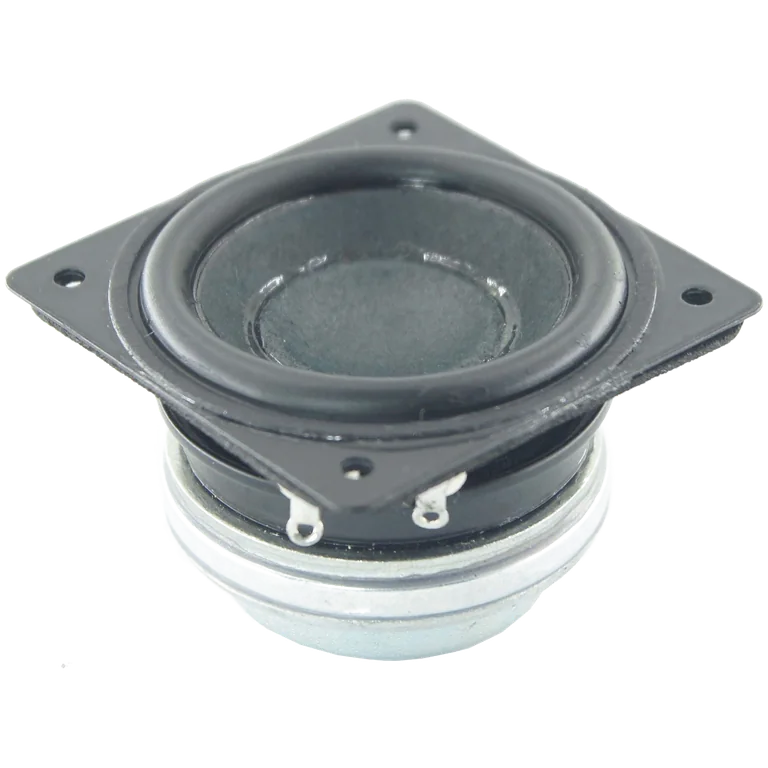

Peerless TC5FC07-04 standard | Fs 170 Hz, 84.3 dB, Qts 0.450 | LoudspeakerLab

Thiele-Small parameters

Fs: 170 Hz; Qts: 0.450; Qes: 0.507; Qms: 4.290; Vas: 0.12 L; Sd: 7.8 cm²; Re: 3.60 Ω; Le: 0.07 mH; Sensitivity: 84.3 dB; Nominal Z: 4.0 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 72 · DI tracking 62 · DI smoothness 36

Usable passband

Scored passband 1004 Hz–9.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~0.1 L · Fb 169 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• madisound — $21.60 USD
• parts_express — $26.29 USD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Peerless
