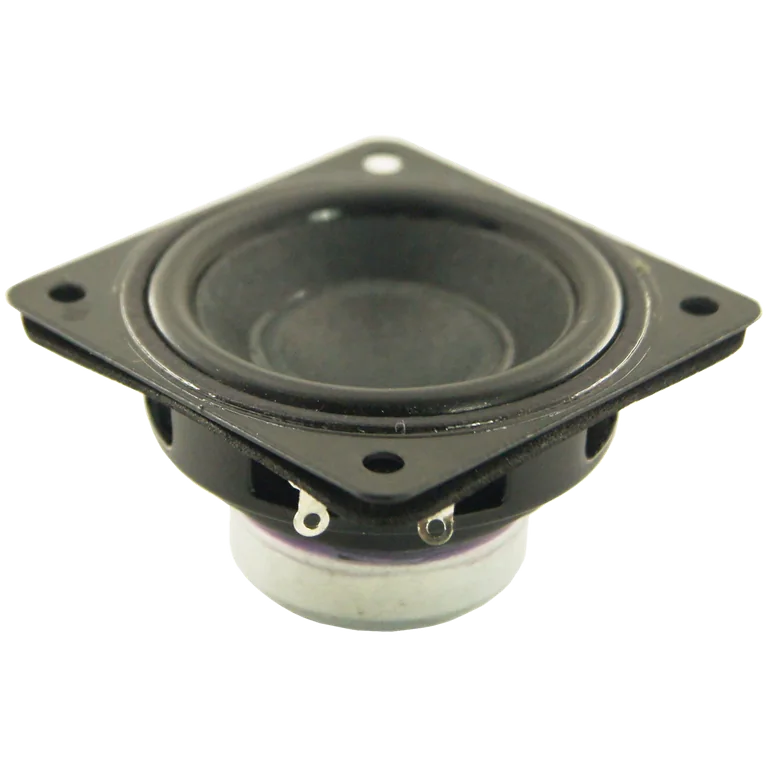

Peerless TC5FC00-04 standard | Fs 230 Hz, 85.0 dB, Qts 1.000 | LoudspeakerLab

Thiele-Small parameters

Fs: 230 Hz; Qts: 1.000; Qes: 1.340; Qms: 4.560; Vas: 0.09 L; Sd: 7.8 cm²; Re: 3.00 Ω; Le: 0.04 mH; Sensitivity: 85.0 dB; Nominal Z: 3.2 Ω; Measured range: 20-40000 Hz

Driver quality scores

On-axis flatness 75 · DI tracking 24 · DI smoothness 13

Usable passband

Scored passband 1442 Hz–15.6 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~0.2 L

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $10.49 USD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Peerless
