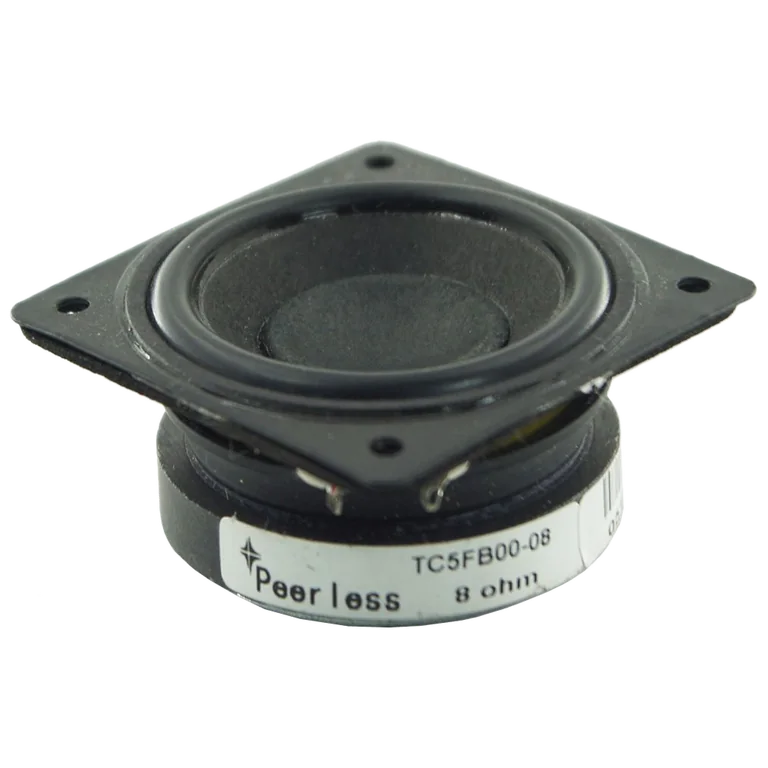

Peerless TC5FB00-08 standard | Fs 250 Hz, 79.1 dB, Qts 1.900 | LoudspeakerLab

Thiele-Small parameters

Fs: 250 Hz; Qts: 1.900; Qes: 3.210; Qms: 4.920; Vas: 0.07 L; Sd: 7.8 cm²; Re: 6.50 Ω; Le: 0.09 mH; Sensitivity: 79.1 dB; Nominal Z: 6.8 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 75 · DI tracking 26 · DI smoothness 24

Usable passband

Scored passband 1004 Hz–20.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~0.3 L

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $11.29 USD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Peerless
