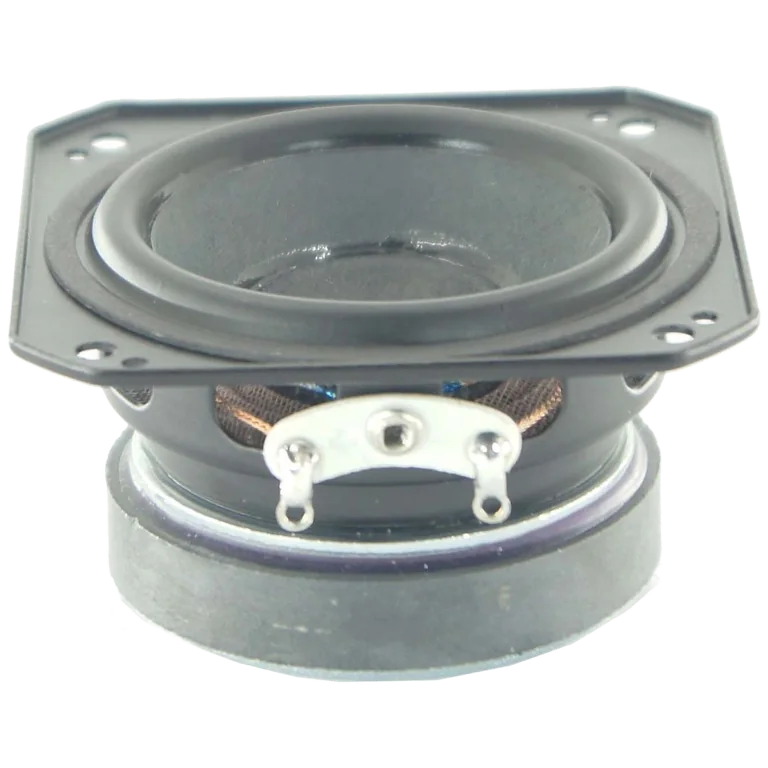

Peerless TC55FD00-08 standard | Fs 180 Hz, 80.1 dB, Qts 1.200 | LoudspeakerLab

Thiele-Small parameters

Fs: 180 Hz; Qts: 1.200; Qes: 2.540; Qms: 2.420; Vas: 0.16 L; Sd: 11.0 cm²; Re: 6.80 Ω; Le: 0.06 mH; Sensitivity: 80.1 dB; Nominal Z: 7.3 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 56 · DI tracking 27 · DI smoothness 15

Usable passband

Scored passband 1178 Hz–15.9 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~0.4 L

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $8.98 USD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Peerless
