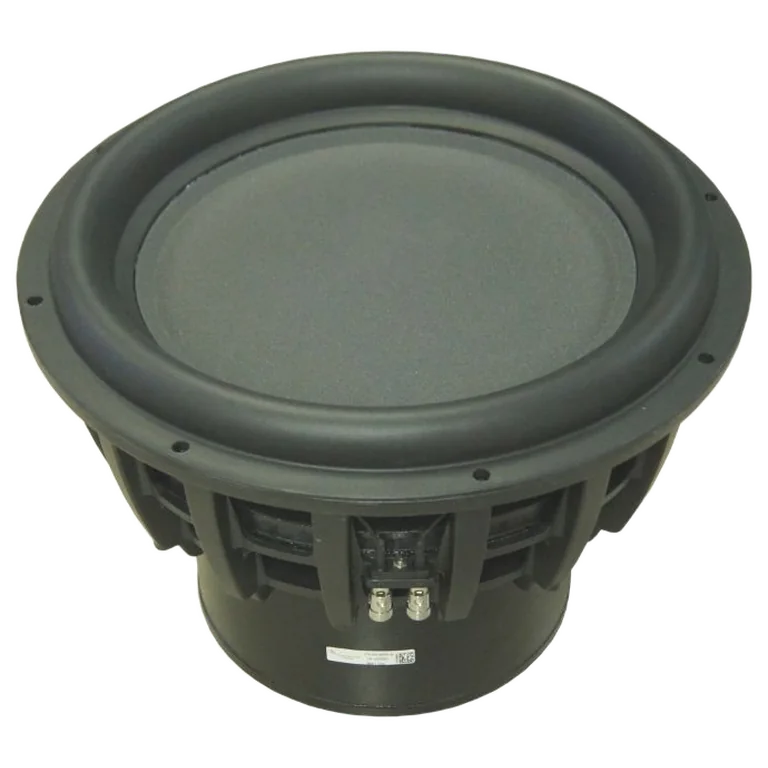

Peerless STW-350F188PR01 standard | Fs 21 Hz, 76.4 dB, Qts 0.460 | LoudspeakerLab

Thiele-Small parameters

Fs: 21 Hz; Qts: 0.460; Qes: 0.470; Qms: 14.600; Vas: 90.30 L; Sd: 775.0 cm²; Re: 12.00 Ω; Le: 9.19 mH; Sensitivity: 76.4 dB; Nominal Z: 24.5 Ω; Measured range: 10-10000 Hz

Driver quality scores

On-axis flatness 55 · DI tracking 79 · DI smoothness 48

Usable passband

Scored passband 28 Hz–774 Hz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~98.4 L · Fb 20 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• soundimports — $578.47 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

STW-350F188PR01-04

Manufacturer

• Peerless
