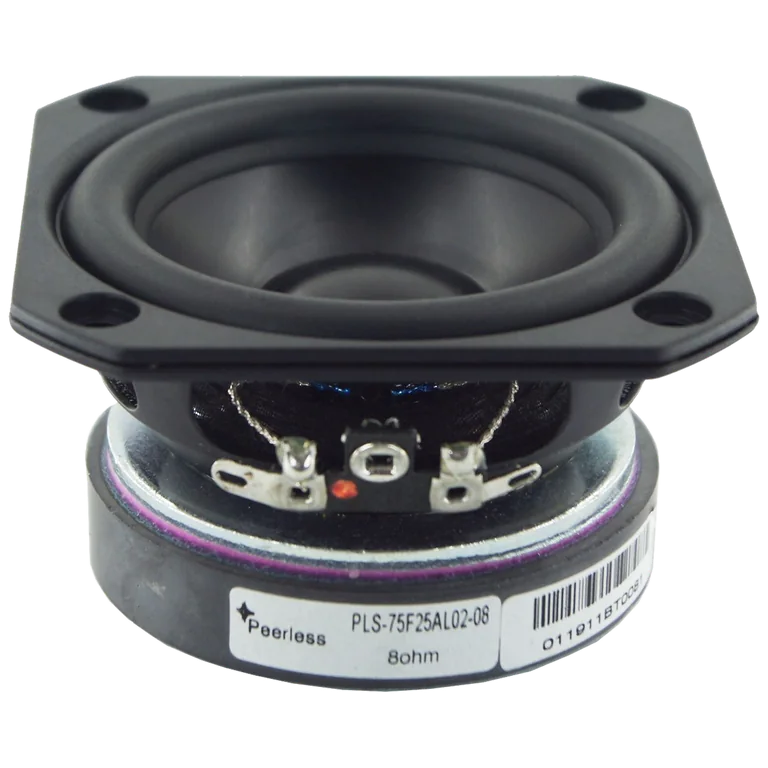

Peerless PLS-75F25AL02 standard | Fs 100 Hz, 83.9 dB, Qts 0.740 | LoudspeakerLab

Thiele-Small parameters

Fs: 100 Hz; Qts: 0.740; Qes: 0.836; Qms: 6.710; Vas: 1.08 L; Sd: 28.9 cm²; Re: 6.30 Ω; Le: 0.09 mH; Sensitivity: 83.9 dB; Nominal Z: 6.8 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 45 · DI tracking 0 · DI smoothness 0

Usable passband

Scored passband 147 Hz–20.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~1.8 L

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• solen — $22.07 CAD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

PLS-75F25AL02-08

Manufacturer

• Peerless
