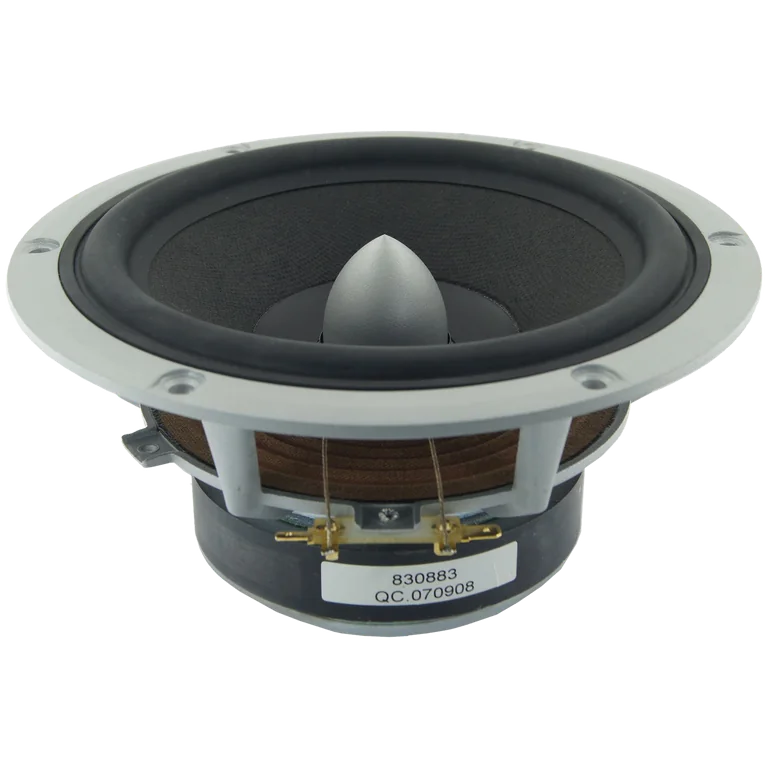

Peerless P830883 standard | Fs 68 Hz, 87.0 dB, Qts 0.670 | LoudspeakerLab

Thiele-Small parameters

Fs: 68 Hz; Qts: 0.670; Qes: 0.971; Qms: 2.180; Vas: 6.81 L; Sd: 143.0 cm²; Re: 5.90 Ω; Le: 0.21 mH; Sensitivity: 87.0 dB; Nominal Z: 6.6 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 56 · DI tracking 12 · DI smoothness 40

Usable passband

Scored passband 72 Hz–3.6 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~11.1 L

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $63.98 USD
• soundimports — $66.07 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

HDS-P830883

Manufacturer

• Peerless
