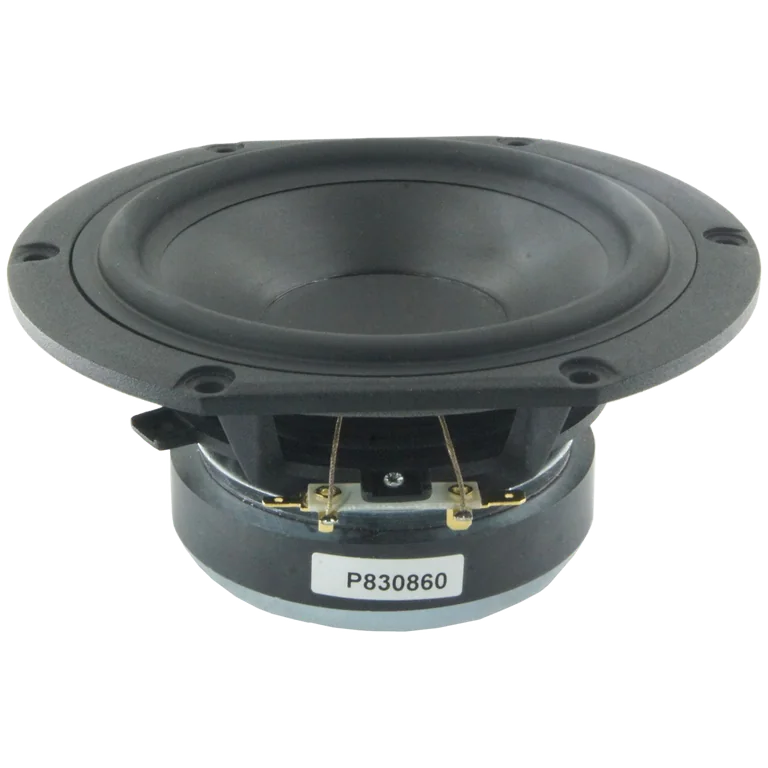

Peerless P830860 standard | Fs 72 Hz, 87.5 dB, Qts 0.540 | LoudspeakerLab

Thiele-Small parameters

Fs: 72 Hz; Qts: 0.540; Qes: 0.725; Qms: 2.080; Vas: 6.12 L; Sd: 88.3 cm²; Re: 6.00 Ω; Le: 0.28 mH; Sensitivity: 87.5 dB; Nominal Z: 6.4 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 70 · DI tracking 32 · DI smoothness 42

Usable passband

Scored passband 98 Hz–4.4 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~9.6 L · Fb 62 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $42.98 USD
• soundimports — $45.41 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

HDS-P830860

Manufacturer

• Peerless
