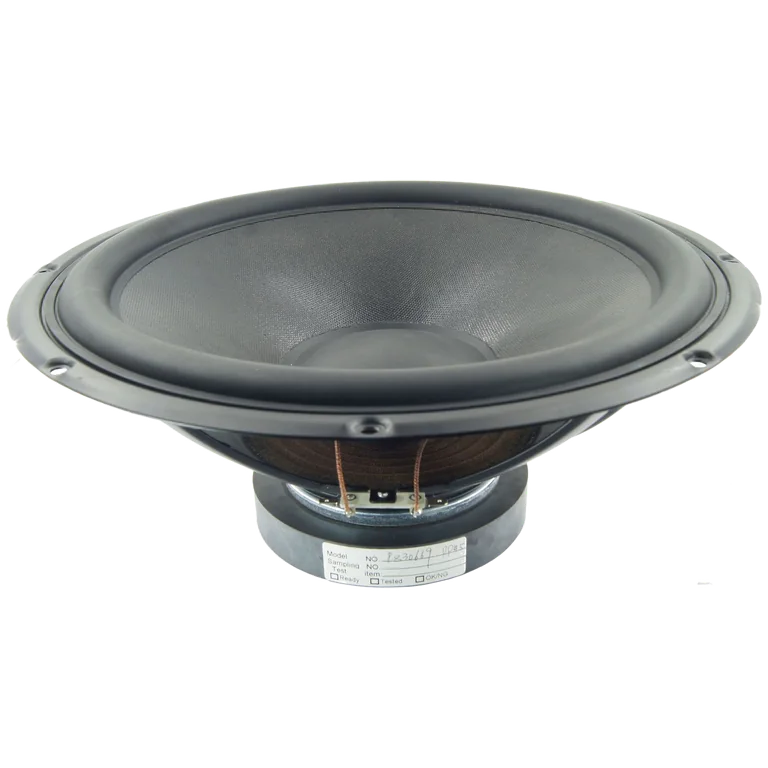

Peerless P830669 standard | Fs 34 Hz, 89.3 dB, Qts 0.640 | LoudspeakerLab

Thiele-Small parameters

Fs: 34 Hz; Qts: 0.640; Qes: 0.678; Qms: 9.980; Vas: 107.00 L; Sd: 523.0 cm²; Re: 5.60 Ω; Le: 1.12 mH; Sensitivity: 89.3 dB; Nominal Z: 6.5 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 76 · DI tracking 48 · DI smoothness 42

Usable passband

Scored passband 48 Hz–1.7 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~185.7 L

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $85.98 USD
• soundimports — $82.60 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SLS-P830669

Manufacturer

• Peerless
