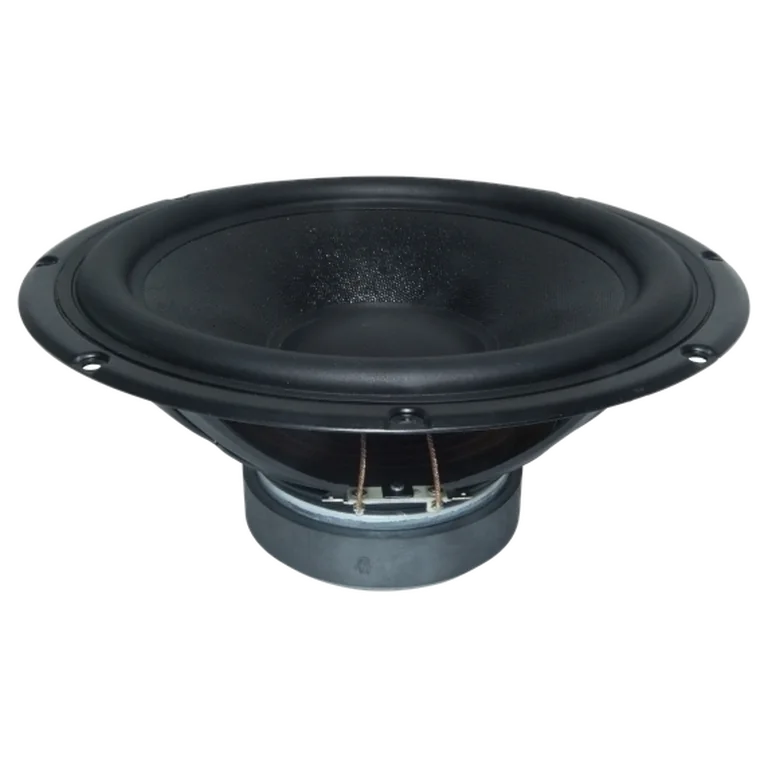

Peerless P830668 standard | Fs 35 Hz, 86.6 dB, Qts 0.590 | LoudspeakerLab

Thiele-Small parameters

Fs: 35 Hz; Qts: 0.590; Qes: 0.646; Qms: 7.280; Vas: 62.90 L; Sd: 346.0 cm²; Re: 5.60 Ω; Le: 1.46 mH; Sensitivity: 86.6 dB; Nominal Z: 6.6 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 73 · DI tracking 72 · DI smoothness 46

Usable passband

Scored passband 48 Hz–2.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~126.3 L · Fb 28 Hz

Measurement profiles

• spec sheet (spec_sheet)

Public designs

1 public loudspeaker design on LoudspeakerLab use this driver.

• Peerless- Tarkus remake

Where to buy

• parts_express — $66.00 USD
• soundimports — $74.34 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SLS-P830668

Manufacturer

• Peerless
