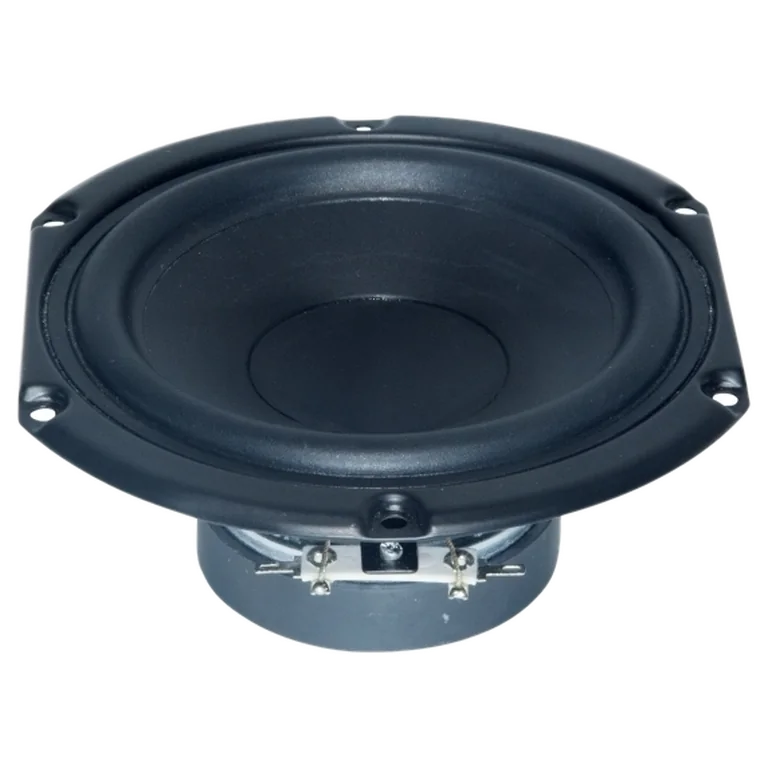

Peerless P830656 standard | Fs 65 Hz, 84.5 dB, Qts 0.620 | LoudspeakerLab

Thiele-Small parameters

Fs: 65 Hz; Qts: 0.620; Qes: 0.760; Qms: 3.470; Vas: 6.58 L; Sd: 86.6 cm²; Re: 5.90 Ω; Le: 0.49 mH; Sensitivity: 84.5 dB; Nominal Z: 6.5 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 77 · DI tracking 32 · DI smoothness 41

Usable passband

Scored passband 90 Hz–5.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~12.0 L

Measurement profiles

• spec sheet (spec_sheet)

Public designs

1 public loudspeaker design on LoudspeakerLab use this driver.

• Peerless 830656 #3

Where to buy

• parts_express — $21.49 USD
• soundimports — $24.75 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

SDS-P830656

Manufacturer

• Peerless
