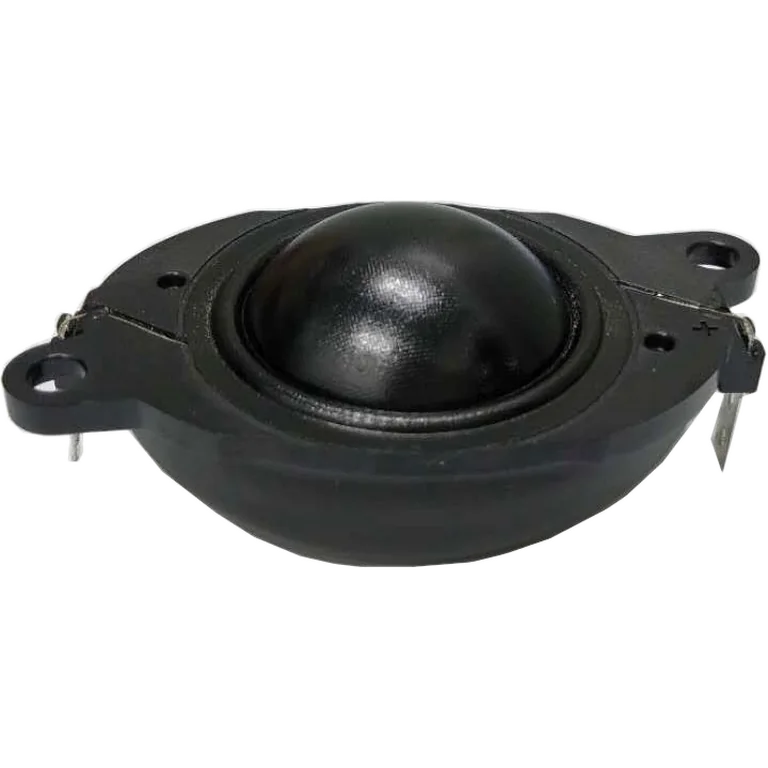

Peerless OX32SC00-08 standard | Fs 750 Hz, 89.5 dB, Qts 1.100 | LoudspeakerLab

Thiele-Small parameters

Fs: 750 Hz; Qts: 1.100; Qes: 1.460; Qms: 4.610; Vas: 0.02 L; Sd: 11.0 cm²; Re: 6.50 Ω; Le: 0.07 mH; Sensitivity: 89.5 dB; Nominal Z: 7.1 Ω; Measured range: 200-40000 Hz

Driver quality scores

On-axis flatness 64 · DI tracking 14 · DI smoothness 28

Usable passband

Scored passband 1483 Hz–13.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $31.50 USD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Peerless
