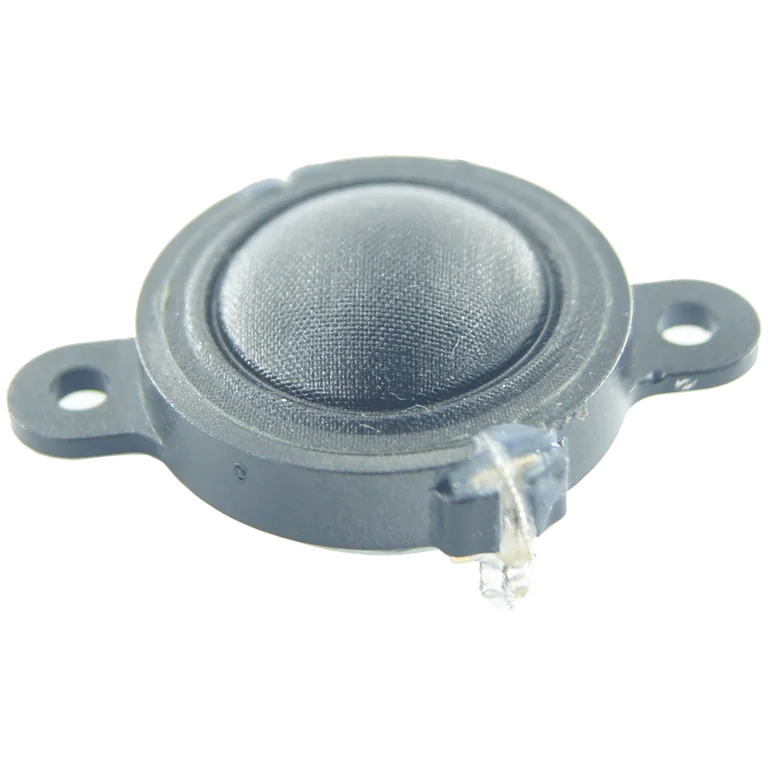

Peerless OC16SC04-04 standard | Fs 2200 Hz, 85.4 dB, Qts 1.700 | LoudspeakerLab

Thiele-Small parameters

Fs: 2200 Hz; Qts: 1.700; Qes: 4.450; Qms: 2.710; Vas: 0.00 L; Sd: 3.1 cm²; Re: 4.10 Ω; Le: 0.03 mH; Sensitivity: 85.4 dB; Nominal Z: 4.1 Ω; Measured range: 200-40000 Hz

Driver quality scores

On-axis flatness 70 · DI tracking 66 · DI smoothness 0

Usable passband

Scored passband 3961 Hz–7.9 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $9.79 USD
• soundimports — $12.36 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Peerless
